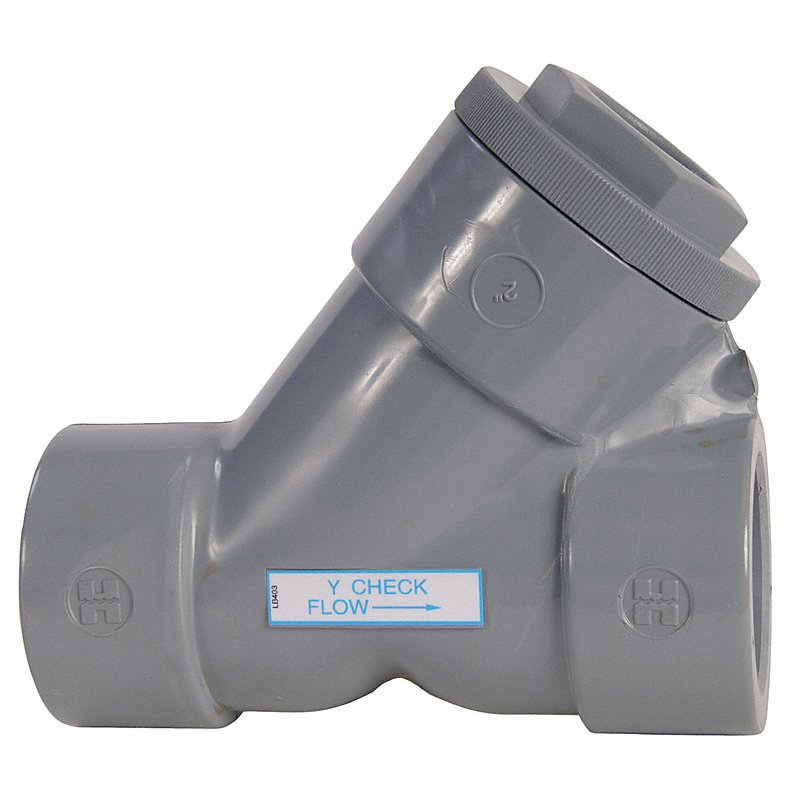

HAYWARD YC10125TE 1-1/4 PVC Y-Check Valve w/EPDM o-ring seat and seal

Product Description

The HAYWARD YC10125TE is a 1-1/4 inch PVC Y-Check Valve designed for various water and chemical processing applications. This valve features a threaded end connection and is made with durable EPDM softgoods. It operates efficiently with a pressure rating of 150 psi at a temperature of seventy degrees Fahrenheit.

• Full port for maximum flow
• Minimum pressure drop for efficient operation
• Reliable sealing with EPDM o-ring

Product Highlights

This valve is suitable for several applications including wastewater treatment, swimming pools, and marine environments.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• Body Material: PVC

Technical Specifications

• Series: YC Series
• Nominal Size: 1-1/4 in
• Dimensions: 6.63 in length
• End Style: Thread
• Pressure Rating: 150 psi
• Port Type: Full
• Softgoods Material: EPDM
• Temperature Rating: 70 deg F
• Top to Inlet Center: 4-1/2 in
