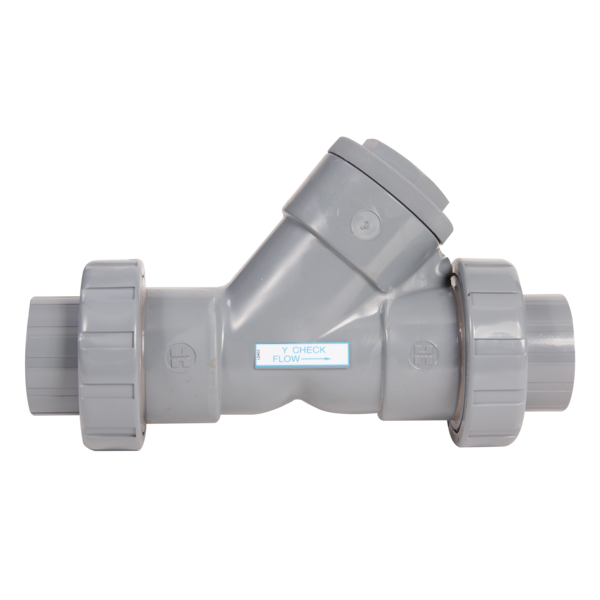

HAYWARD YC10075TE 3/4 PVC Y-Check Valve w/EPDM O-Ring Seat and Seal

Product Description

The HAYWARD YC10075TE is a 3/4 inch PVC Y-Check Valve designed for various applications. This valve features a threaded end connection and is made from durable PVC material. It can withstand pressures of up to 150 psi at a temperature of seventy degrees Fahrenheit.

• Constructed from durable PVC
• Designed for minimal pressure drop
• Suitable for various industries including water treatment and food processing

Product Highlights

This Y-Check Valve is ideal for use in systems requiring reliable backflow prevention. It is effective in applications across wastewater treatment, chemical processing, and more.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• Model Number: YC10075TE

Technical Specifications

• Body Material: PVC
• Dimensions: 4.18 inches in length
• End Style: Thread
• Nominal Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 150 psi
• Series: YC Series
• Softgoods Material: EPDM
• Temperature Rating: 70 degrees Fahrenheit
• Top to Inlet Center: 2.88 inches
