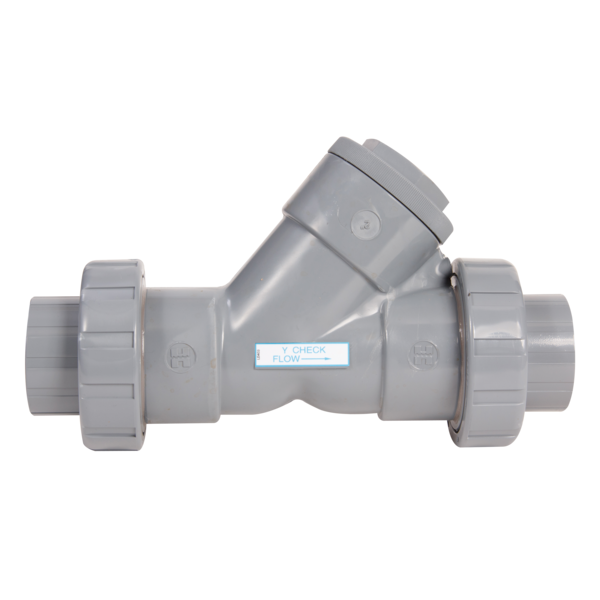

HAYWARD YC10075SE 3/4 PVC Y-Check Valve w/EPDM o-ring seat and seal; socket end connections

Product Description

The HAYWARD YC10075SE is a 3/4 inch PVC Y-Check Valve designed for various applications. Its PVC body and EPDM softgoods ensure reliability and durability. This valve is suitable for water and wastewater treatment, food and beverage processing, and pool applications.

• Minimal pressure drop
• 150 psi pressure rating
• Socket end connection for easy installation

Product Highlights

This Y-Check Valve features a full port design, providing optimal flow characteristics with minimal back pressure needed to seat the piston.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• MPN: YC10075SE

Technical Specifications

• Body Material: PVC
• Dimensions: 4.18 inches long
• End Style: Socket
• Nominal Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 150 psi
• Series: YC Series
• Softgoods Material: EPDM
• Temperature Rating: 70 degrees F
• Top to Inlet Center: 2.88 inches
