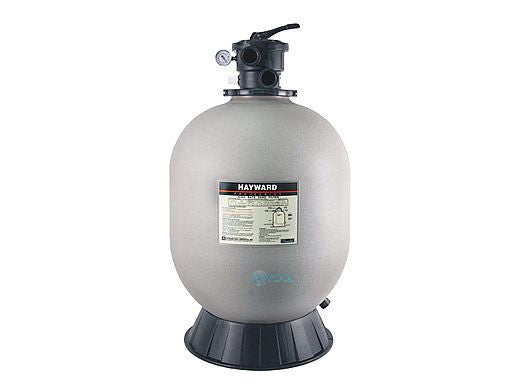

HAYWARD W3S270T2 Pro Series Sand Filter 2 Top Mount Valve 27 Tank

Product Description

The Hayward Pro Series Sand Filter W3S270T2 is a top mount sand filter designed for efficient water filtration. It features a durable construction aimed at providing reliable performance throughout various weather conditions. This filter accommodates a diameter of twenty-seven inches and incorporates a two-inch top mount valve.

• Precision engineered umbrella-fold self-cleaning lateral system
• Large pressure sand/water drain for winterizing or servicing
• Available with a seven-position or six-position VariFlo control valve

Product Highlights

This filter is known for its corrosion-proof materials making it ideal for all weather applications, ensuring long-term use and stability.

Product Information

Standard Information

• Brand: Hayward
• Item: Sand Filter with 2 inch valve

Technical Specifications

• Filtration Area: 3.7 sq-ft
• Flow Rate: 74 gpm/sq-ft
• Max Working Pressure: 50 psi
• Turnover: 35520 gallons at 8 hours, 44400 gallons at 10 hours
• Media Required: 350 lbs of # 1/2 silica sand
• Vertical Clearance: 18 inches
• Side Clearance: 18 inches
• Underdrain: 360-degree self-cleaning slotted laterals
