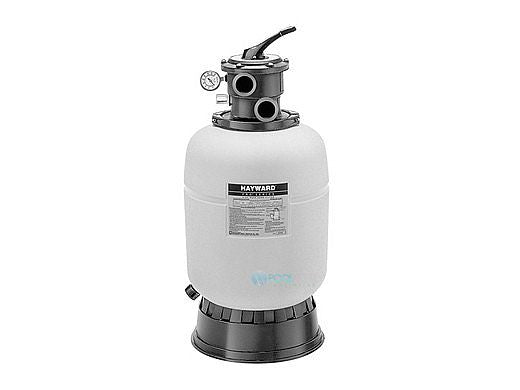

HAYWARD W3S166T Hayward Pro Series Sand Filter with Top Mount Valve 16 Inch

Product Description

The HAYWARD W3S166T Sand Filter with Top Mount Valve is designed for efficient filtration in both new pools and aftermarket setups. It features a durable tank molded for long-lasting performance, making it suitable for various pool sizes.

• Offers balanced backwashing and effective flow.
• Equipped with a self-cleaning under-drain system.
• Install easily with a top mount design.

Product Highlights

This sand filter optimizes water clarity and flow rate through its advanced engineering.

Product Information

Standard Information

• Brand: HAYWARD
• Item: Sand Filter with Valve

Technical Specifications

• Filtration Area: 1.4 square feet
• Flow Rate: 35 gallons per minute
• Size: 16 inches
• Maximum Working Pressure: 50 psi
• Mounting Type: Top Mount
• Turnover: 14,400 gallons at 8 hours, 21,600 gallons at 12 hours
• Media Required: 100 pounds of #20 Silica Sand (0.45 - 0.55 mm)
• Filter Tank: Molded Polymeric
• Fastening: Flange Clamp Design
• Vertical Clearance: 18 inches
• Underdrain: 360-degree Self-Cleaning Slotted Laterals
