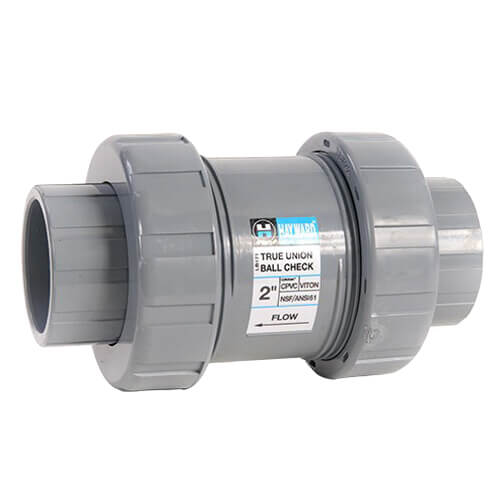

Hayward TC20200ST 2 CPVC True Union Ball Check Valve w/FPM O-Ring

Product Description

The Hayward TC20200ST is a durable two-inch CPVC True Union Ball Check Valve. It features a socket/thread end style and is rated for a maximum pressure of two hundred thirty-five psi. This valve is made from CPVC and includes FKM softgoods, making it suitable for a variety of applications.

• Connection type: Socket x FNPT
• Designed for horizontal or vertical installation
• Constructed for positive sealing with minimum back pressure

Product Highlights

This valve is ideal for use in water and wastewater treatment, chemical processing, and food and beverage applications. It offers reliability in swimming pools and marine environments.

Product Information

Standard Information

• Manufacturer: Hayward Industrial Products
• MPN: TC20200ST

Technical Specifications

• Body Material: CPVC
• Dimensions: Four and three-fourths inches high
• End Style: Socket/Thread
• Inlet to Outlet Length: Eight inches
• Nominal Size: Two inches
• Port Type: Full
• Pressure Rating: Two hundred thirty-five psi
• Series: TC Series
• Softgoods Material: FKM
• Temperature Rating: Seventy degrees Fahrenheit
• Type: True Union
