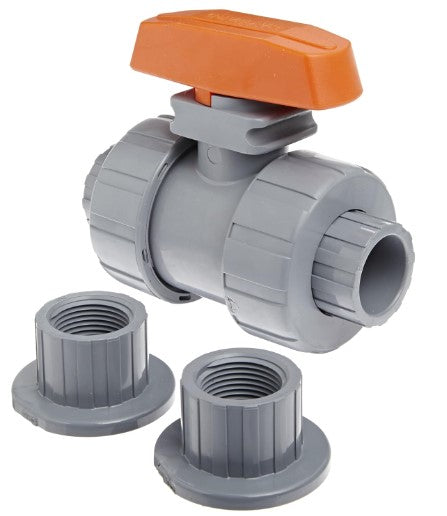

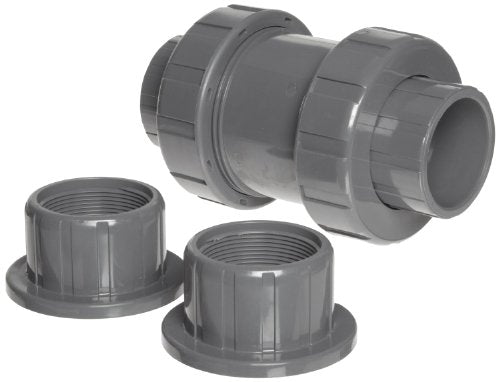

Hayward TC20075STE TC Series True Union Ball Check Valve 3/4 inches CPVC/EPDM

Product Description

The HAYWARD TC20075STE is a TC Series true union ball check valve with socket and threaded connections and EPDM O-rings. Constructed from CPVC, this valve is designed for durability and reliable performance. It features a 3/4" size and is assembled with silicone-free lubricant. This valve is suitable for both horizontal and vertical installation.

• True union ball check valve design
• Socket and threaded end connections
• Assembled with silicone free lubricant

Product Highlights

The HAYWARD TC20075STE is ideal for applications requiring a dependable CPVC check valve with secure connections.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: TC20075STE
• Country of Origin: United States

Technical Specifications

• Material: CPVC
• Size: 3/4"
• Type: Ball Check Valve
• Connections: Socket and Threaded
• O-Rings: EPDM
• Brand: Hayward
• Manufacturer: Hayward Industries, Inc.
• Model / MPN: TC20075STE
• Number of Items: 1.0
• Item: Check Valve
• Width: 2.63"
• Length: 4-3/4"
• Pipe Size: 3/4 in
• Standards: NSF 61
• Max. Temp.: 190 Degrees F
• Flow Design: Single
• Sub-Category: CPVC
• Body Material: CPVC
• Max. Pressure: 235 psi @ 70 Degrees F
• Seal Material: EPDM
• Seat Material: EPDM
• Overall Height: 2-5/8"
• Connection Type: Socket x Thread
• Cracking Pressure: 3 psi
• Mounting Position: Vertical (Flow Up)
• Full Flow - Valves: Yes
• Min. Temp. - Valves: 40 Degrees F
• Valve Body Material: CPVC
• Application - Valves: General Purpose, Pumps
• Mounting Orientation: Vertical
• Material of Construction: CPVC
• Mechanism and Body Design: Inline True Union
• Max. Water Pressure - Valves: 235 psi @ 70 Degrees F
• Series: TC Series
• Valve Type: True Union Ball Check Valve
• Valve Size: 3/4"
• Valve Connection Type: Socket and Threaded
• Seal Type: Double O-Ring Stem
• UPC Code: 0610377738170
• Ratings & Standards: NSF/ANSI 61
• End Style: Socket/Thread
• Inlet to Outlet Length: 4-3/4 in
• Nominal Size: 3/4 In
• Port Type: Full
• Pressure Rating: 235 psi
• Softgoods Material: EPDM
• Temperature Rating: 70 deg F
• Product Type: Valve
• Inlet Size: 3/4 in
• Material - Housing: CPVC
• Outlet Size: 3/4 in
• Max Pressure: 235 psi (16.2 bar)
• End Connection: Socket/Threaded
• Notes: 3/4" CPVC True Union Ball Check Valve w/EPDM O-Rings; Socket/Threaded End Connections
• Schedule: 80
• UNSPSC Code: 40141607
