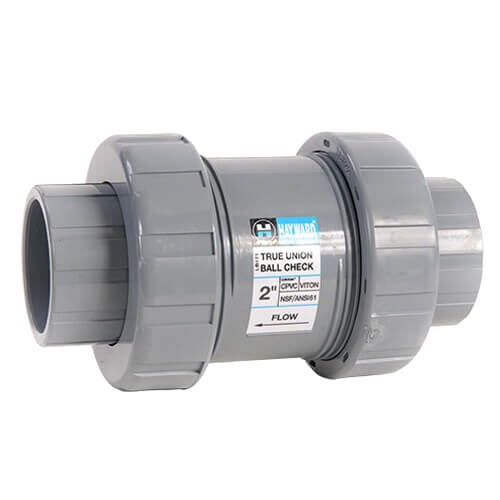

Hayward TC20050ST 1/2 TC Series CPVC True Union Ball Check Valve w/FPM O-Ring

Product Description

The Hayward TC20050ST is a half-inch CPVC True Union Ball Check Valve. This product has a socket/thread end style and is designed for reliable performance in various applications. It features FPM o-rings for enhanced sealing capability.

• Pressure rating up to 235 psi
• Temperature rating of seventy degrees Fahrenheit
• Compatible with horizontal or vertical installation

Product Highlights

The valve is suitable for water treatment, chemical processing, and features a square cut seat for consistent sealing.

Product Information

Standard Information

• Manufacturer: Hayward Industrial Products
• Type: True Union

Technical Specifications

• Body Material: CPVC
• Nominal Size: 1/2 inch
• Port Type: Full
• Inlet to Outlet Length: 4.63 inches
• Pressure Rating: 235 psi
• Series: TC Series
• Softgoods Material: FKM
• Dimensions: 2-1/4 inches high
• Temperature Rating: 70 degrees Fahrenheit
