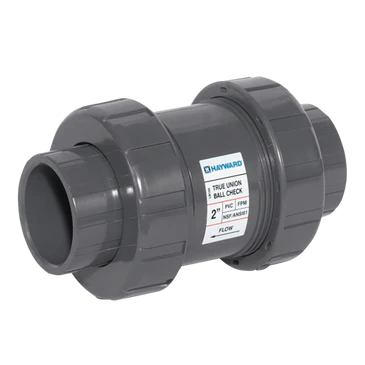

HAYWARD TC1400SE 4 PVC True Union Ball Check Valve w/EPDM o-rings

Product Description

The HAYWARD TC1400SE is a four-inch PVC True Union Ball Check Valve designed for reliable operation in water and wastewater management. This valve features a socket end connection system and is rated for 150 psi pressure. The valve uses EPDM materials for seals, allowing for effective performance in high-demand applications.

• Constructed from PVC for durability
• Designed for both horizontal and vertical installations
• Meets NSF standards for safety

Product Highlights

This valve prevents backflow with its innovative ball mechanism, ensuring efficient flow control in various settings.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• Series: TC Series

Technical Specifications

• Body Material: PVC
• Dimensions: 8.56 inches height
• Inlet to Outlet Length: 12.94 inches
• Nominal Size: 4 inches
• Port Type: Full
• Pressure Rating: 150 psi
• Temperature Rating: 70 degrees F
• Softgoods Material: EPDM
• Type: True Union
