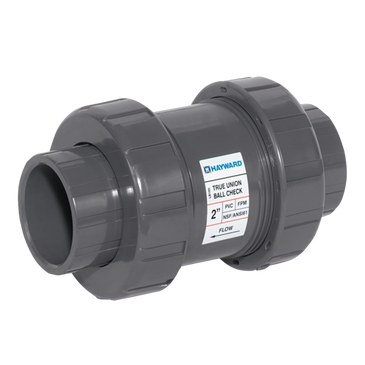

HAYWARD TC1300SE 3 PVC True Union Ball Check Valves w/EPDM O-Rings

Product Description

The HAYWARD TC1300SE is a 3-inch PVC True Union Ball Check Valve designed for efficient fluid control. This product features socket end connections and is suitable for horizontal or vertical installation. It is built to handle pressures of up to 150 psi and temperatures up to 140 degrees Fahrenheit.

• True union ball check valve with EPDM O-rings
• Full port design for maximum flow
• Suitable for various applications in plumbing and irrigation

Product Highlights

This valve is ideal for preventing backflow in both residential and commercial systems. The full port design allows for unrestricted flow, enhancing system efficiency.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• Type: True Union

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Color: Dark Gray
• End Style: Socket
• Flow Rate: 150 gpm
• Inlet to Outlet Length: 10.56 inches
• Nominal Size: 3 inches
• Port Type: Full
• Pressure Rating: 150 psi
• Series: TC Series
• Softgoods Material: EPDM
• Temperature Rating: 140 degrees Fahrenheit
