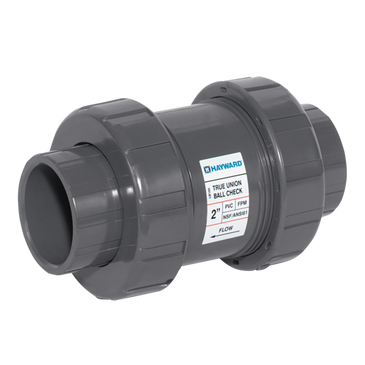

HAYWARD TC10125ST 1-1/4 PVC True Union Ball Check Valves w/FPM o-rings; socket/threaded end

Product Description

The HAYWARD TC10125ST is a 1-1/4 inch PVC True Union Ball Check Valve suitable for various plumbing and fluid management applications. This valve features a socket/threaded end style, designed to handle a maximum pressure of 150 psi and a temperature of 140 degrees Fahrenheit. It provides a flow rate of up to 30 gallons per minute and is ideal for both horizontal and vertical installations.

• Corrosion-resistant PVC construction
• Full port design
• Positive sealing with a square cut seat

Product Highlights

The TC10125ST valve is built for durability and functionality. It includes FPM o-rings and is designed for minimal back pressure. This ensures efficient operation in various applications, from irrigation systems to industrial processes.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• Standard Pack: Order quantity must be in multiples of six

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Color: Dark Gray
• End Style: Socket/Thread
• Flow Rate: 30 gpm
• Inlet to Outlet Length: 6.3 inches
• Nominal Size: 1-1/4 inches
• Port Type: Full
• Pressure Rating: 150 psi
• Series: TC Series
• Softgoods Material: FKM
• Temperature Rating: 140 degrees Fahrenheit
• Type: True Union
