Hayward TBH2150ASTE0000 tbh true union ball valve 1-1/2 inches

Product Description

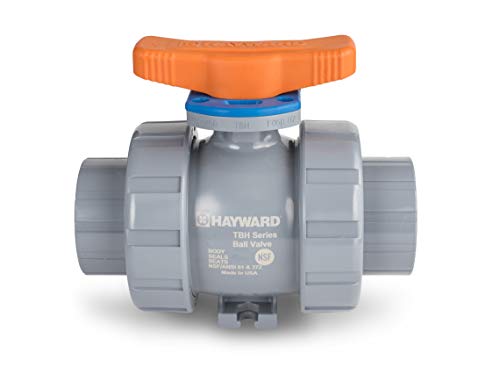

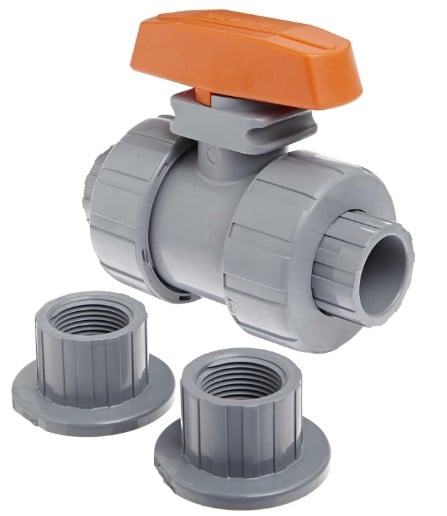

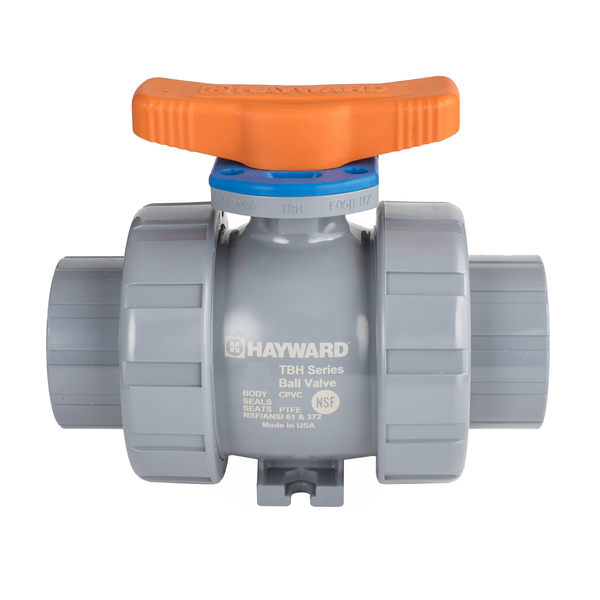

The Hayward TBH2150ASTE0000 Series True Union ball valve is an industrial-grade valve for chemical processing, industrial plants, and demanding applications. It features socket/threaded end connectors and EPDM seals. The TBH Series incorporates System2 Sealing Technology and a standard integral lock-out feature for enhanced safety. Actuator-ready design with ISO 5211 pattern.

• System2 Sealing Technology provides longer cycle life
• Features a lockout/tagout mechanism for enhanced safety
• Ergonomic handle for improved grip and comfort

Product Highlights

The Hayward TBH Series True Union ball valve is designed for durability and safety in demanding industrial environments.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: TBH2150ASTE0000
• Country of Origin: USA

Technical Specifications

• Brand: Hayward
• Manufacturer: Hayward Industries
• Model / MPN: TBH2150ASTE0000
• Size: 1.5 Inch
• Number of Items: 1.0
• Product Type: VALVE
• Port Type: Full Port
• Handle Style: T-Handle
• Connection Type: Socket x Socket, FNPT x FNPT
• Pressure Rating: 250 PSI @ 70°F
• Weight Actual: 2.62
• Shipping Depth: 10.65
• Shipping Width: 4
• Shipping Height: 4
• Pipe Size: 1-1/2 in
• Material: CPVC
• Sealing Material: EPDM
• Seat Material: Reversible PTFE
• End Connection Type: Socket/Threaded
• Operation Type: Manual
• Cv Coefficient: 90.0000
• Chassis Description: Standard Body
• Series: TBH
• Valve Type: True Union Ball Valve
• Valve Size: 1-1/2"
• Valve Connection Type: Socket and Threaded
• Seal Type: Double O-Ring Stem
• Seal Material: EPDM
• Max Pressure: 250 PSI (17.2 bar) @ 70° F (21° C)
• Carton Qty: 1
• End Style: Socket/Thread
• Nominal Size: 1-1/2 In
