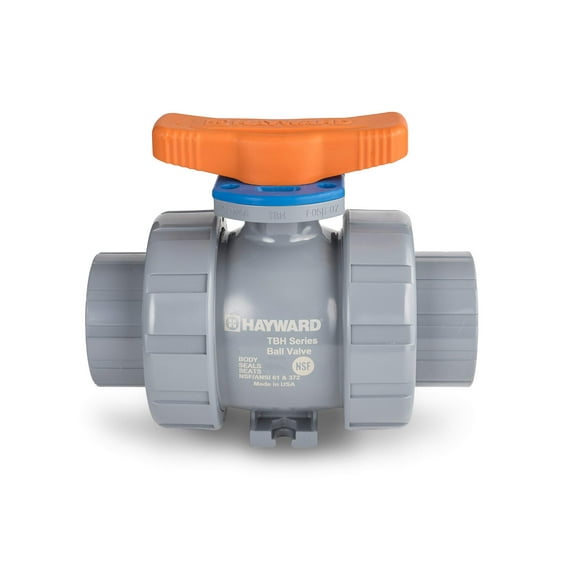

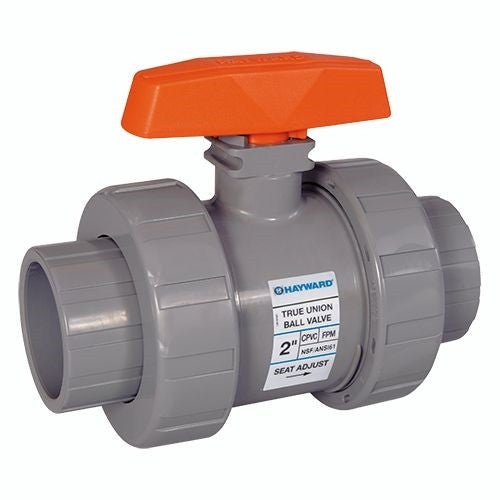

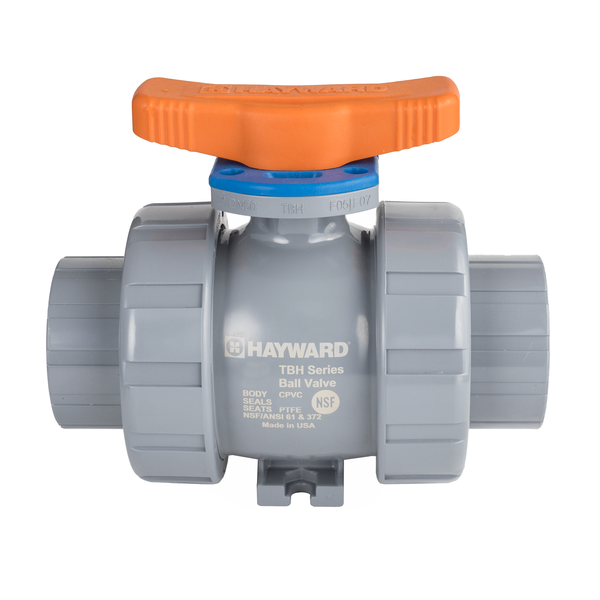

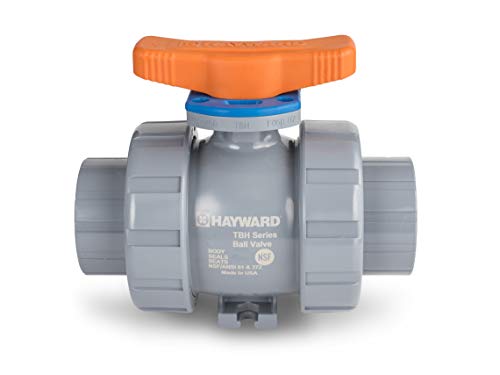

Hayward TBH2125ASTE0000 Series TBH True Union Ball Valve 1-1/4 inches

Product Description

The Hayward TBH2125ASTE0000 Series True Union ball valve is an industrial-grade valve suitable for various applications. It features socket/threaded end connections, CPVC construction, and EPDM seals. The valve has a low maintenance design with System2 Sealing Technology and a standard integral lock-out feature. Actuator ready design with ISO 5211 pattern.

• True Union Ball Valve
• Socket/Threaded End
• CPVC Construction

Product Highlights

This Hayward True Union ball valve offers reliable performance with its robust construction and features.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: TBH2125ASTE0000
• Country of Origin: USA

Technical Specifications

• Brand: Hayward
• Model / MPN: TBH2125ASTE0000
• Size: 1.25 Inch
• Number of Items: 1.0
• Pipe Size: 1-1/4 in
• Material: CPVC
• Sealing Material: EPDM
• Seat Material: PTFE
• End Connection Type: Socket/Threaded
• Operation Type: Manual
• Pressure Rating: 250 PSI
• Cv Coefficient: 75.0000
• Chassis Description: Standard Body
• Valve Type: True Union Ball Valve
• Valve Size: 1-1/4"
• Valve Connection Type: Socket and Threaded
• Seal Type: Double O-Ring Stem
• Max Pressure: 250 PSI (17.2 bar) @ 70 F (21 C)
• UPC Code: 0610377350907
• Ratings & Standards: NSF/ANSI 61
