Hayward tbh2100aste0000 tbh series ball valve 1 inches

Product Description

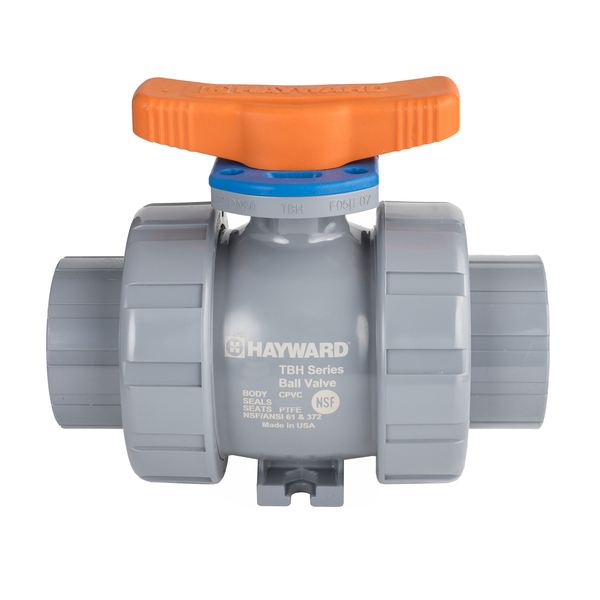

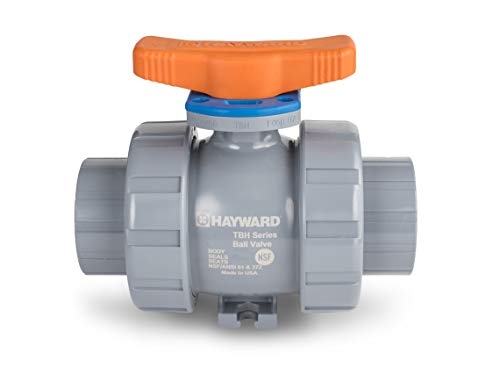

The Hayward TBH2100ASTE0000 is a TBH Series True Union ball valve with a socket/threaded end and EPDM seals. Designed for low maintenance, it features System2 Sealing Technology. The valve includes an integral lock-out for safety and is actuator-ready with an ISO 5211 mounting pattern.

• System2 Sealing Technology provides longer cycle life
• 250 PSI / 16 Bar, non-shock at 70 00b0F / 23 00b0C full pressure rating
• Consistent operating torque with adjustment-free design

Product Highlights

This Hayward ball valve offers durability, safety, and ease of use for various applications.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: TBH2100ASTE0000
• Country of Origin: USA

Technical Specifications

• Brand: Hayward
• Model / MPN: TBH2100ASTE0000
• Size: 1 Inch
• Number of Items: 1.0
• Product Type: VALVE
• Manufacturer: Hayward Industries
• Product Group: BISS
• Port Type: Full Port
• Handle Style: T-Handle
• Connection Type: FNPT x FNPT, Socket x Socket
• Pressure Rating: 250 PSI @ 70 00b0F
• Pipe Size: 1 in
• Material: CPVC
• Sealing Material: EPDM
• Seat Material: PTFE
• End Connection Type: Socket/Threaded
• Operation Type: Manual
• Cv Coefficient: 29.0000
• Chassis Description: Standard Body
• MPN: TBH2100ASTE0000
• Series: TBH Series
• Valve Type: True Union Ball Valve
• Valve Size: 1"
• Valve Connection Type: Socket and Threaded
• Seal Type: Double O-Ring Stem
• Max Pressure: 250 PSI (17.2 bar) @ 70 00b0 F (21 00b0 C)
• Ratings & Standards: NSF/ANSI 61
• End Style: Socket/Thread
• Nominal Size: 1 In
• Actuation: Manual
• Gender: Female
• Lockout: T
• Threading: IPS
