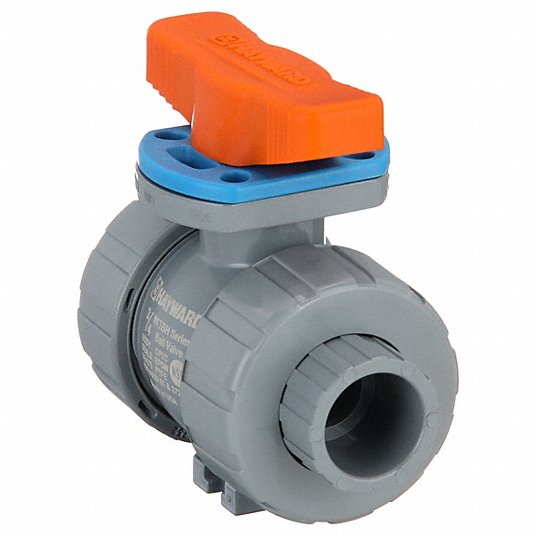

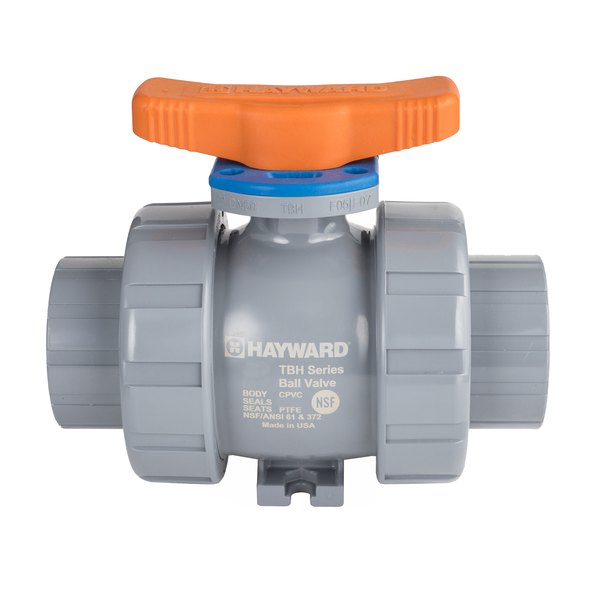

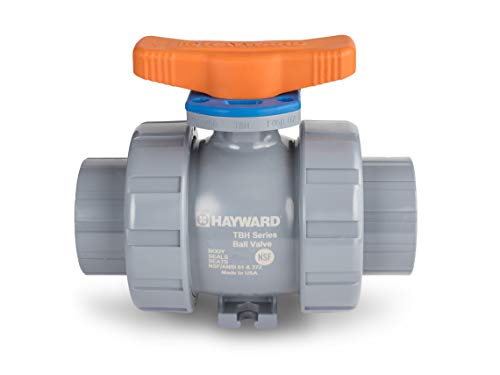

Hayward TBH2075ASTE0000 tbh series true union ball valve 3/4 inches socket/threaded end

Product Description

The Hayward TBH2075ASTE0000 Series True Union Ball Valve features a socket/threaded end and CPVC with EPDM seals, with a 3/4" size. The TBH Series features a low maintenance design with System2 Sealing Technology. A standard integral lock-out feature secures onto the body of the valve.

• System2 Sealing Technology provides longer cycle life
• 250 PSI / 16 Bar, non-shock at 70°F / 23°C full pressure rating
• Consistent operating torque with adjustment-free design

Product Highlights

This Hayward ball valve is designed for durability and safety, ensuring reliable performance in demanding applications. Suitable for corrosive chemicals and water.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: TBH2075ASTE0000
• Country of Origin: USA

Technical Specifications

• Brand: Hayward
• Manufacturer: Hayward Industries
• Model / MPN: TBH2075ASTE0000
• Size: 3/4"
• Number of Items: 1.0
• Features: EPDM O-Ring
• Warranty: 2 Year
• Port Type: Full Port
• Handle Style: T-Handle
• Connection Type: FNPT x FNPT, Socket x Socket
• Pressure Rating: 250 PSI @ 70°F
• Sealing Material: EPDM
• Seat Material: PTFE
• End Connection Type: Socket/Threaded
• Operation Type: Manual
• Cv Coefficient: 16.0000
• Chassis Description: Standard Body
• For Media: Corrosive Chemicals; Water
• Body Material: CPVC
• Valve Construction: Three-Piece
• Valve Body Style: Straight
• Ball Port Style: Full
• Port Nominal Valve Size: 3/4 in
• Connection Size - Side 1: 3/4 in
• Connection Gender - Side 1: Female
• Connection Type - Side 1: True-Union Socket/True-Union NPT
• Connection Size - Side 2: 3/4 in
• Connection Gender - Side 2: Female
• Connection Type - Side 2: Socket
• Max. Pressure (CWP): 250 psi
• Max. Pressure (Steam): Not Rated
• Max. Pressure (Combustible Gas): Not Rated
• Vacuum Service Rating: Not Rated
• Handle: Locking Tee
• Handle Material: GFPP
• Ball Material: CPVC
• Seal Material: EPDM
• Stem Material: CPVC
• Stem Type: Blowout Resistant
• Vented Ball Valve: Non-Vented
• Media Temp. Range: 34 °F to 190 °F
• Special Features: Actuator Compatible
• 3-A Compliance: Not Rated
• NSF Certifications for Food and Drinking Water: NSF 61
• Standards: ASTM D1784 Cell Class 23447; ASTM D4101 Cell Class 85580; NSF/ANSI 372
• Included Mounting: ISO 5211 Actuator Mounting Pad
• Overall Length: 7.17 in
• Handle Length: 3.5 in
• Ball Opening Size: 0.72 in
• Valve Series: TBH
• Manufacturer Warranty: 3 yr
• UNSPSC: 40141607
• Suitable Media: Water
• Valve Operation: Manual
• Technical Standard: National Pipe Taper (NPT)
• Diameter: 3/4 in
• End Style: Socket/Thread
• Nominal Size: 3/4 In
• Weight: 0.90 lb
• Operating Pressure [Max]: 250 psi
• Flow Configuration: Bi-directional
• Valve Material: CPVC
• O-Ring Material: EPDM
