Product Description

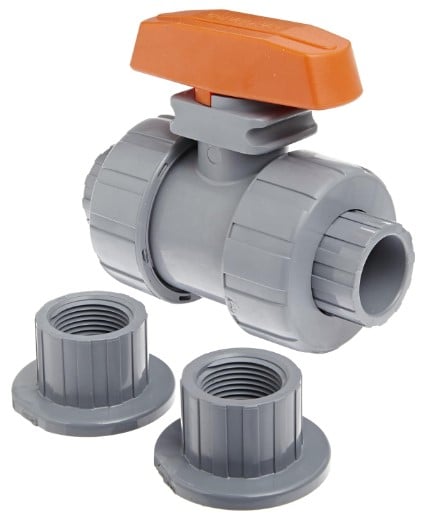

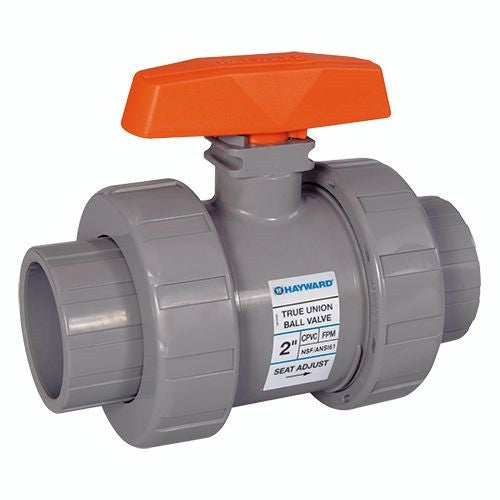

The Hayward TBH1100ASTV0000 Series TBH True Union Ball Valve features a low-maintenance design with System2™ Sealing Technology. Designed for controlling flow in plumbing and hydraulic systems, it has socket/threaded end connections, FPM seals, and reversible PTFE seats for easy field rebuilds. Actuator ready design with ISO 5211 pattern on all sizes.
- Full 250 psi / PN16 Rating up to 2”/DN50 and 235psi/PN16, Non-Shock at 70°F / 23°C.
- Integral ISO 5211 Mounting Pad for Easy Actuation
- Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
Product Highlights

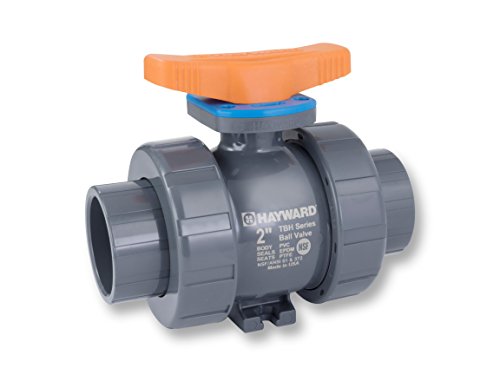

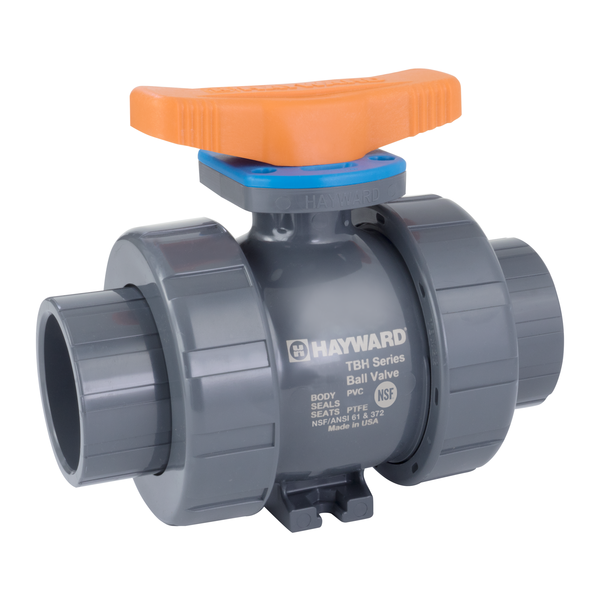

The Hayward TBH Series ball valve is fully pressure rated and available in PVC and CPVC materials. It has a UV resistant ergonomic handle and permanent laser markings.
Product Information
Standard Information
-
Brand: HAYWARD
-
Manufacturer Part Number: TBH1100ASTV0000
-
Country of Origin: USA
Technical Specifications
-
Brand: Hayward
-
Model / MPN: TBH1100ASTV0000
-
Size: 1"
-
Number of Items: 1.0
-
MPN: TBH1100ASTV0000
-
Product Type: VALVE
-
Manufacturer: Hayward Industries
-
Product Group: BISS
-
Port Type: Full Port
-
Handle Style: T-Handle
-
Connection Type: FNPT x FNPT, Socket x Socket
-
Pressure Rating: 250 PSI @ 70°F
-
Material: PVC
-
Body Material: PVC
-
Sealing Material: FPM
-
Seat Material: PTFE
-
End Connection Material: PVC
-
End Connection Type: Socket/Threaded
-
Operation Type: Manual
-
Cv Coefficient: 29.0000
-
Chassis Description: Standard Body
-
Housing Material: PVC (Polyvinyl Chloride)
-
WSP Rating: 150 psi
-
WOG Rating: 150 psi
-
Diameter: 1 in
-
Depth: 5.300
-
Width: 5.300
-
End Style: Socket/Thread
-
Nominal Size: 1 In
-
Series: TBH
-
End Connection: Socket/Threaded
-
End Material: PVC
-
Operation: Manual
