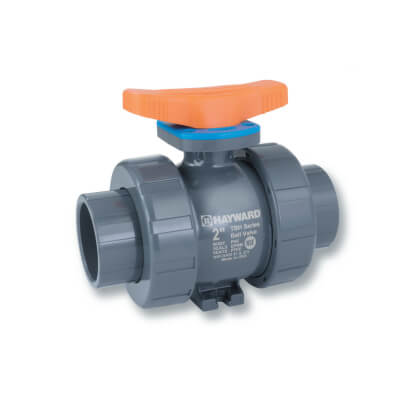

Hayward TBH1050ASTE0000 1/2 TBH Series True Union PVC Ball Valve w/ Socket and Threaded Ends, EPDM O-ring

Product Description

The Hayward TBH1050ASTE0000 is a 1/2 inch true union PVC ball valve designed for reliable performance in plumbing applications. This model features a socket and threaded end configuration, making installation straightforward. The valve is equipped with EPDM O-rings for effective sealing and longevity.

• System2 Sealing Technology for extended cycle life
• Pressure rating of 250 PSI at seventy degrees Fahrenheit
• Ergonomic handle for enhanced comfort and ease of use

Product Highlights

The TBH Series is built to provide low maintenance and dependable operation. The actuator-ready design includes an ISO 5211 mount for simplified actuation.

Product Information

Standard Information

• Brand: Hayward
• MPN: TBH1050ASTE0000

Technical Specifications

• Size: 1/2 inch
• Color: Gray
• Pressure Rating: 250 PSI @ 70°F
• Weight: 0.7 lbs
• Connection Type: FNPT x FNPT, Socket x Socket
• Handle Style: T-Handle
• Warranty: 2 Year
• Port Type: Full Port
