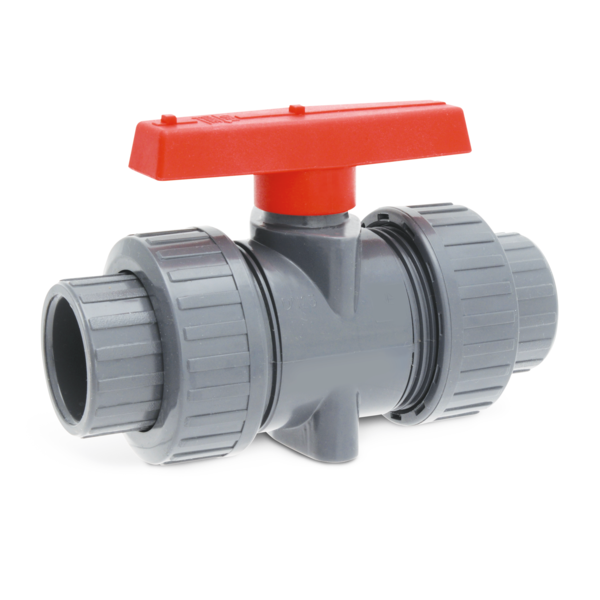

HAYWARD TBB2030SPFG 3 CPVC True Union Ball Valve w/FPM O-Rings

Product Description

The HAYWARD® TBB2030SPFG is a three-inch CPVC true union ball valve designed for reliable performance. This valve features socket end connections and can withstand pressures up to 225 psi at seventy degrees Fahrenheit. Its full port design ensures maximum flow through the valve.

• Socket end connections for easy installation
• Durable CPVC body and PTFE seat trim
• Designed for general service in commercial plumbing, irrigation, and aquariums

Product Highlights

The HAYWARD TBB2030SPFG is built for easy maintenance and automation. It includes a double O-ring stem seal and an adjustable seat retainer.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• UPC: 610377093255

Technical Specifications

• Body Material: CPVC
• Port Type: Full
• Pressure Rating: 225 psi
• Nominal Size: 3 in
• Orifice Size: 2.7 in
• Inlet to Outlet Length: 11.97 in
• Top to Inlet Center: 5.12 in
• Trim Material: PTFE Seat
• Softgoods Material: FPM
• Temperature Rating: 70 deg F
• Series: TBB
• End Style: Socket
