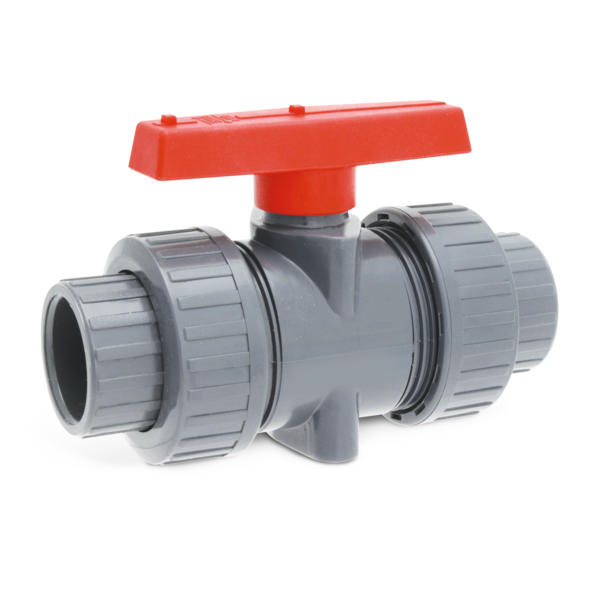

Hayward TBB2020CPFG 2 CPVC True Union Ball Valve w/FPM O-Rings

Product Description

The Hayward TBB2020CPFG is a 2 inch CPVC True Union Ball Valve with FPM O-rings. It features socket and threaded end connections, making it suitable for various applications. This valve is designed to handle pressure ratings up to 225 psi at seventy degrees Fahrenheit. It has a full port design with an orifice size of 1.89 inches, ensuring optimal flow rates.

• Constructed from durable CPVC material
• Double O-ring stem seal for leak prevention
• Compatible with various HVAC and plumbing systems

Product Highlights

Ideal for general service in commercial plumbing, irrigation systems, swimming pools, and aquariums.

Product Information

Standard Information

• Manufacturer: Hayward Industrial Products
• MPN: TBB2020CPFG

Technical Specifications

• Body Material: CPVC
• End Style: Socket/Thread
• Nominal Size: 2 inches
• Orifice Size: 1.89 inches
• Inlet to Outlet Length: 8.15 inches
• Top to Inlet Center: 4.17 inches
• Pressure Rating: 225 psi
• Temperature Rating: 70 degrees Fahrenheit
• Softgoods Material: FPM
• Trim Material: PTFE Seat
• Series: TBB
• Port Type: Full
