Hayward TBB2020CPEG True Union Ball Valve 2 inches Socket x Threaded

Product Description

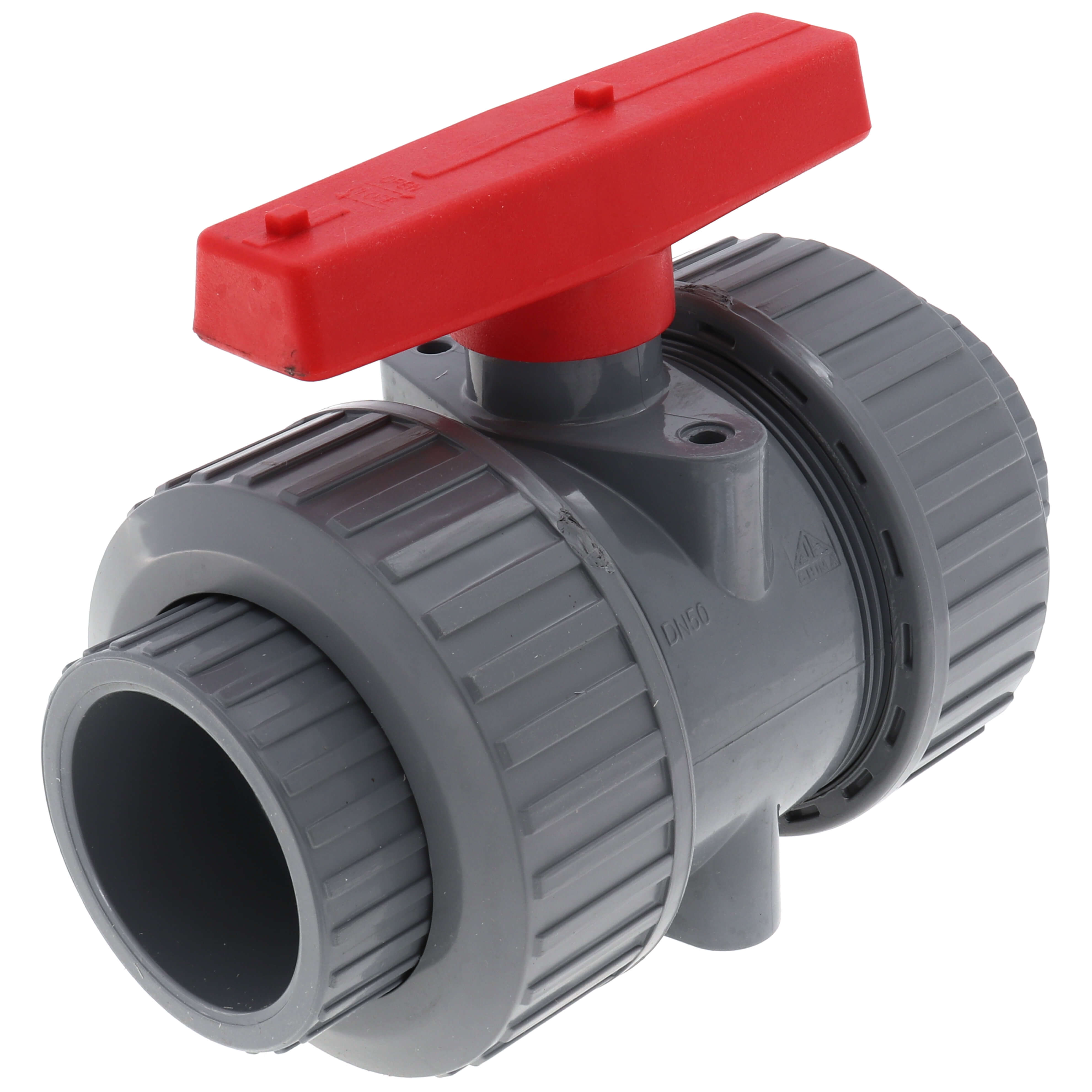

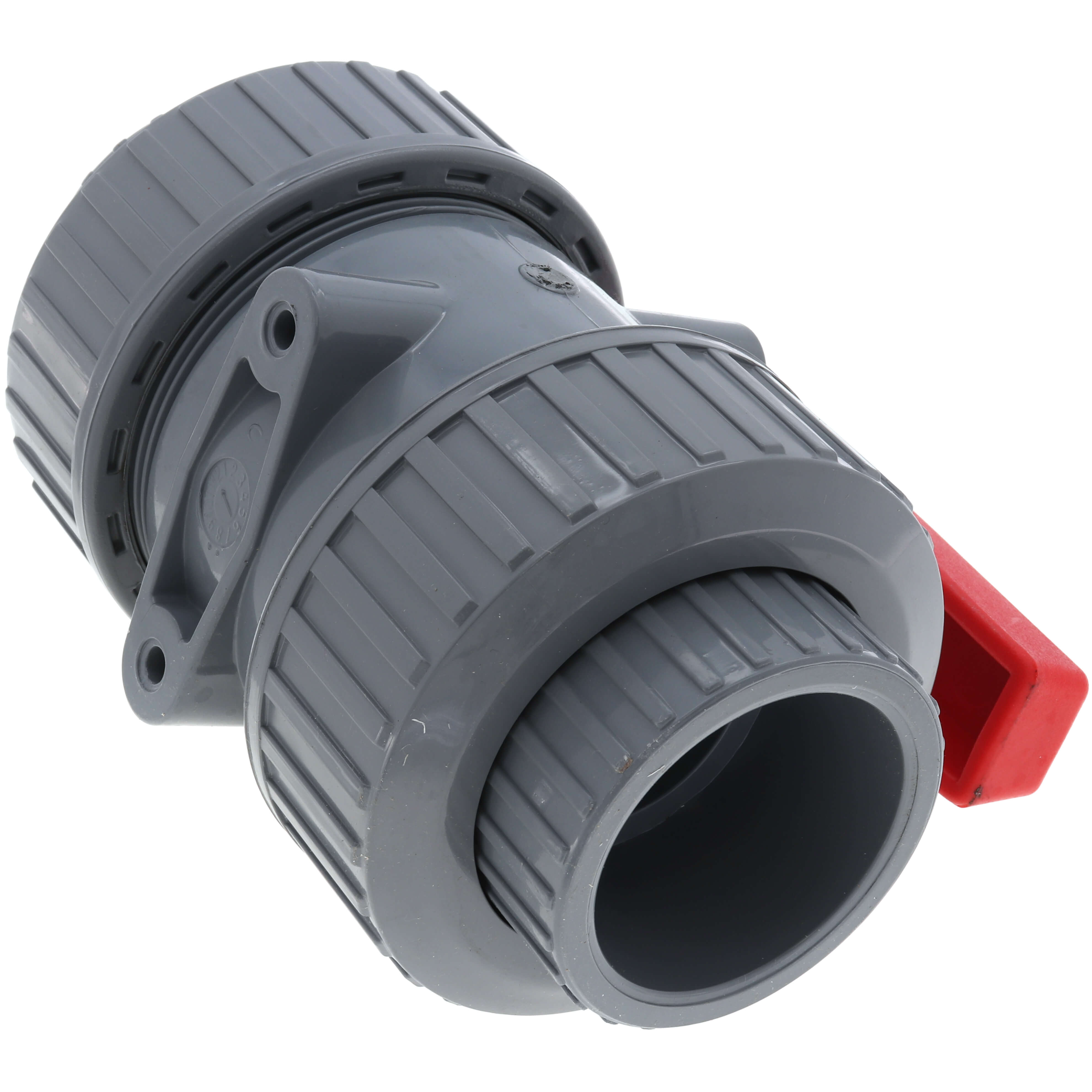

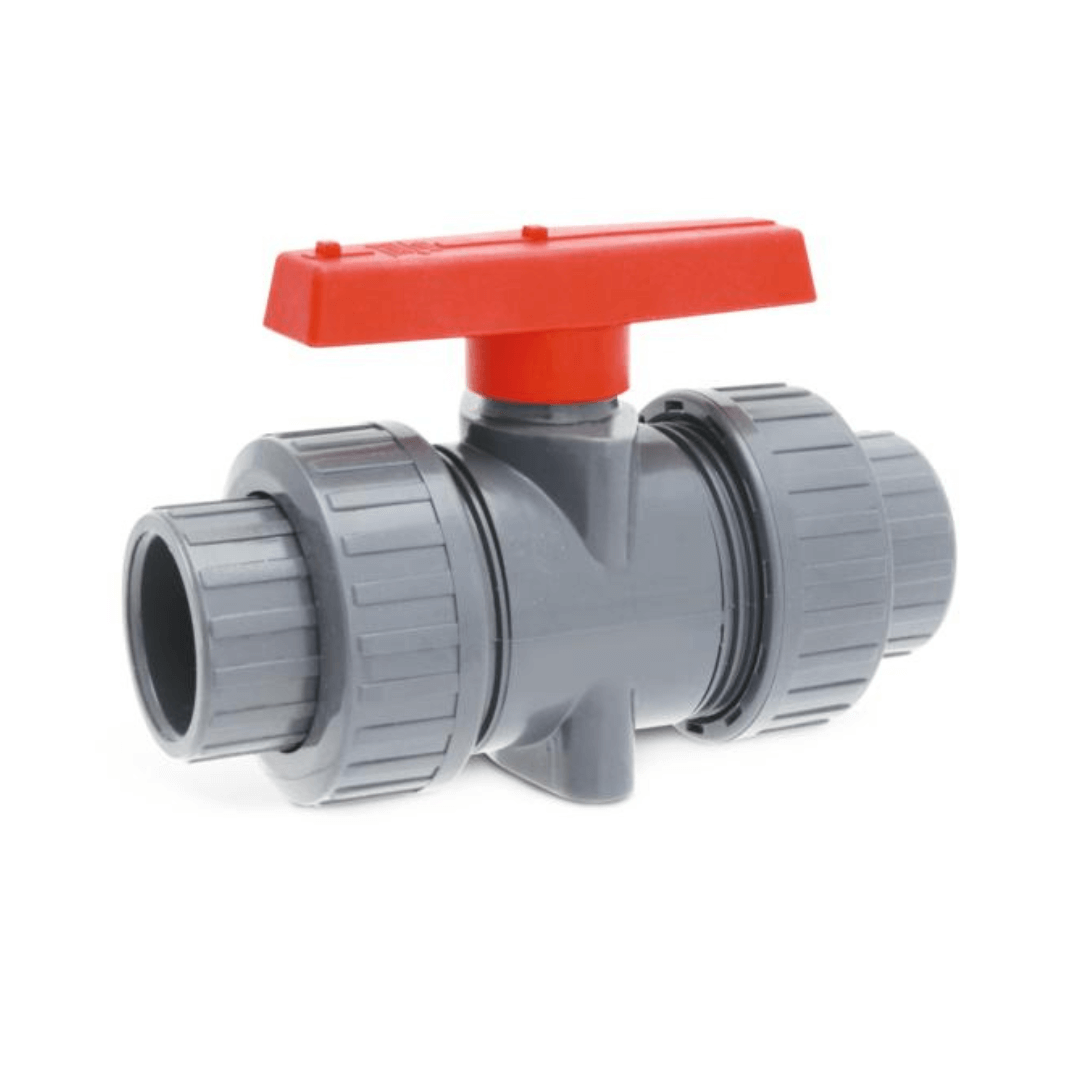

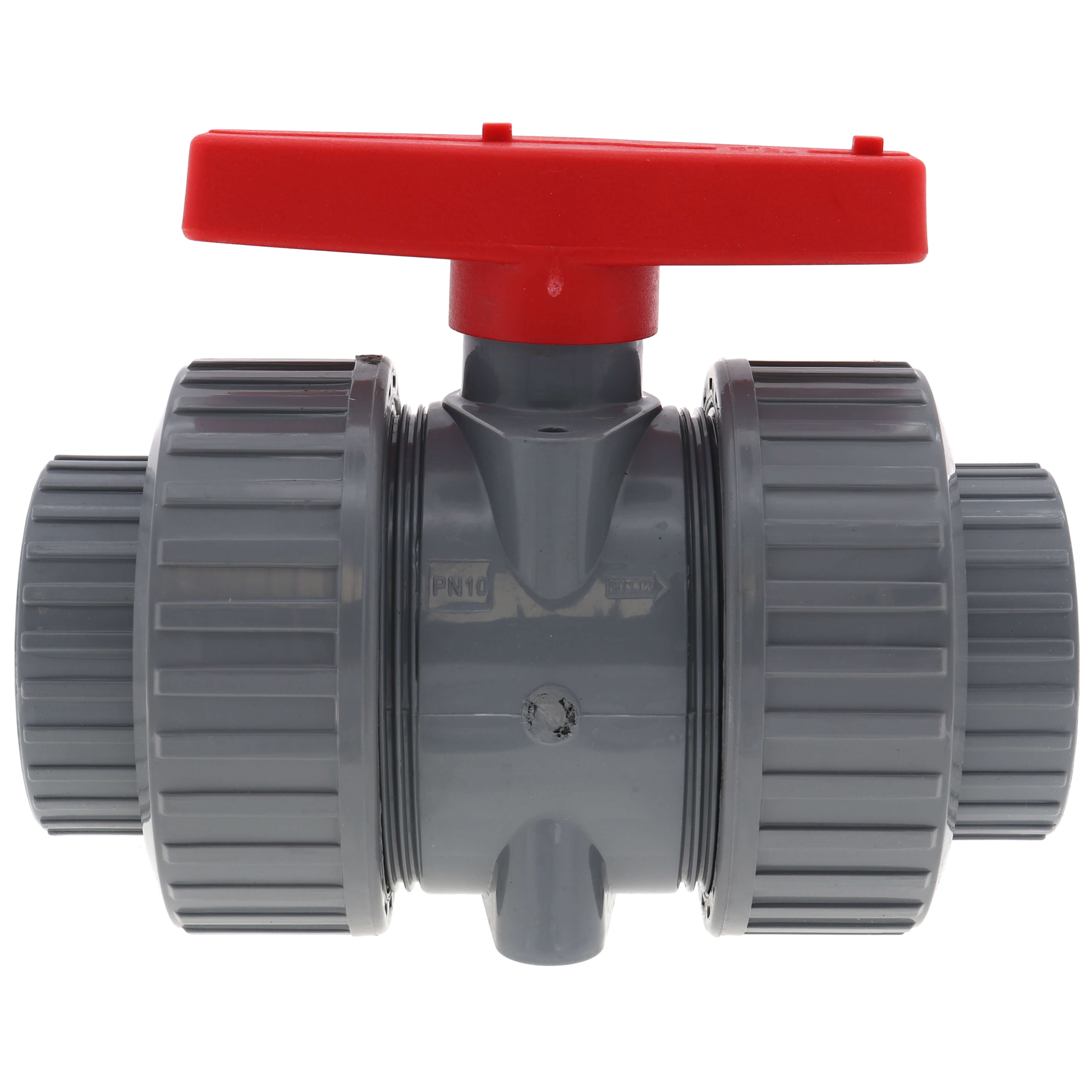

The HAYWARD TBB2020CPEG is a 2" CPVC TBB Series true union ball valve with EPDM o-rings and PTFE seats. It features socket and threaded end connections. TBB Series true union ball valves are offered in PVC, CPVC, PP and PVDF.

• EPDM O-Ring
• Socket/Threaded End Connections
• PTFE Seats

Product Highlights

This true union ball valve is designed for easy maintenance and can be easily automated. It features a double O-Ring stem seal and adjustable seat retainer.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: TBB2020CPEG

Technical Specifications

• Size: 2"
• Connection Type: Socket x FNPT
• MPN: TBB2020CPEG
• Manufacturer: Hayward
• Type: Ball Valve
• Style: True Union
• Series: TBB Series
• Valve Type: True Union Ball Valve
• Valve Size: 2"
• Valve Connection Type: Socket and Threaded
• Material: CPVC
• Seal Type: Double O-Ring Stem
• Seal Material: EPDM
• Seat Material: PTFE
• Port Type: Full
• Max Pressure: 225 PSI (10.3 bar) @ 70 0 B0F (21 0 B0C)
• Body Material: CPVC
• End Style: Socket/Thread
• Inlet to Outlet Length: 8.15 in
• Nominal Size: 2 In
• Orifice Size: 1.89 in
• Pressure Rating: 225 psi
• Softgoods Material: EPDM
• Temperature Rating: 70 deg F
• Trim Material: PTFE Seat
