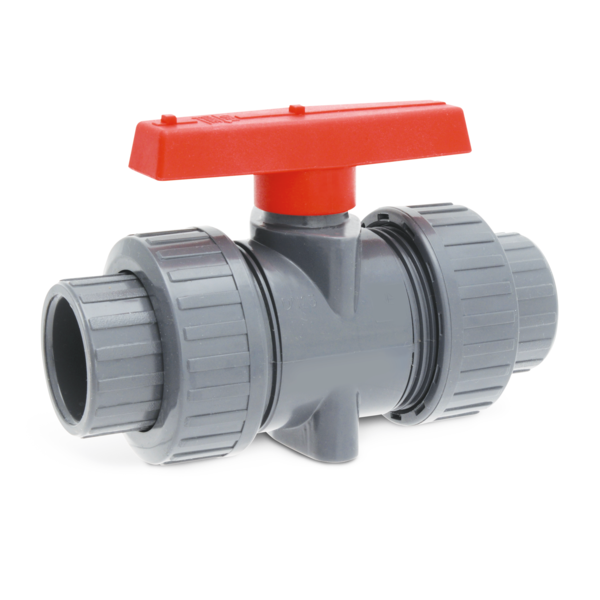

HAYWARD TBB2015CPFG 1-1/2 CPVC True Union Ball Valve w/FPM o-rings

Product Description

The HAYWARD TBB2015CPFG is a 1-1/2 inch CPVC True Union Ball Valve designed for reliable fluid control. This valve features a socket/thread end style and operates effectively at a maximum pressure of two hundred twenty-five psi at seventy degrees Fahrenheit. Its full port design ensures minimal flow resistance.

• Constructed from durable CPVC material
• Equipped with FPM o-rings for enhanced sealing
• Compatible with various applications including plumbing, irrigation, and swimming pools

Product Highlights

The valve provides easy maintenance options and is suitable for automated systems.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• Series: TBB

Technical Specifications

• Body Material: CPVC
• End Style: Socket/Thread
• Nominal Size: 1-1/2 in
• Orifice Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 225 psi
• Temperature Rating: 70 deg F
• Inlet to Outlet Length: 6.89 in
• Top to Inlet Center: 3.43 in
• Trim Material: PTFE Seat
• Softgoods Material: FPM
