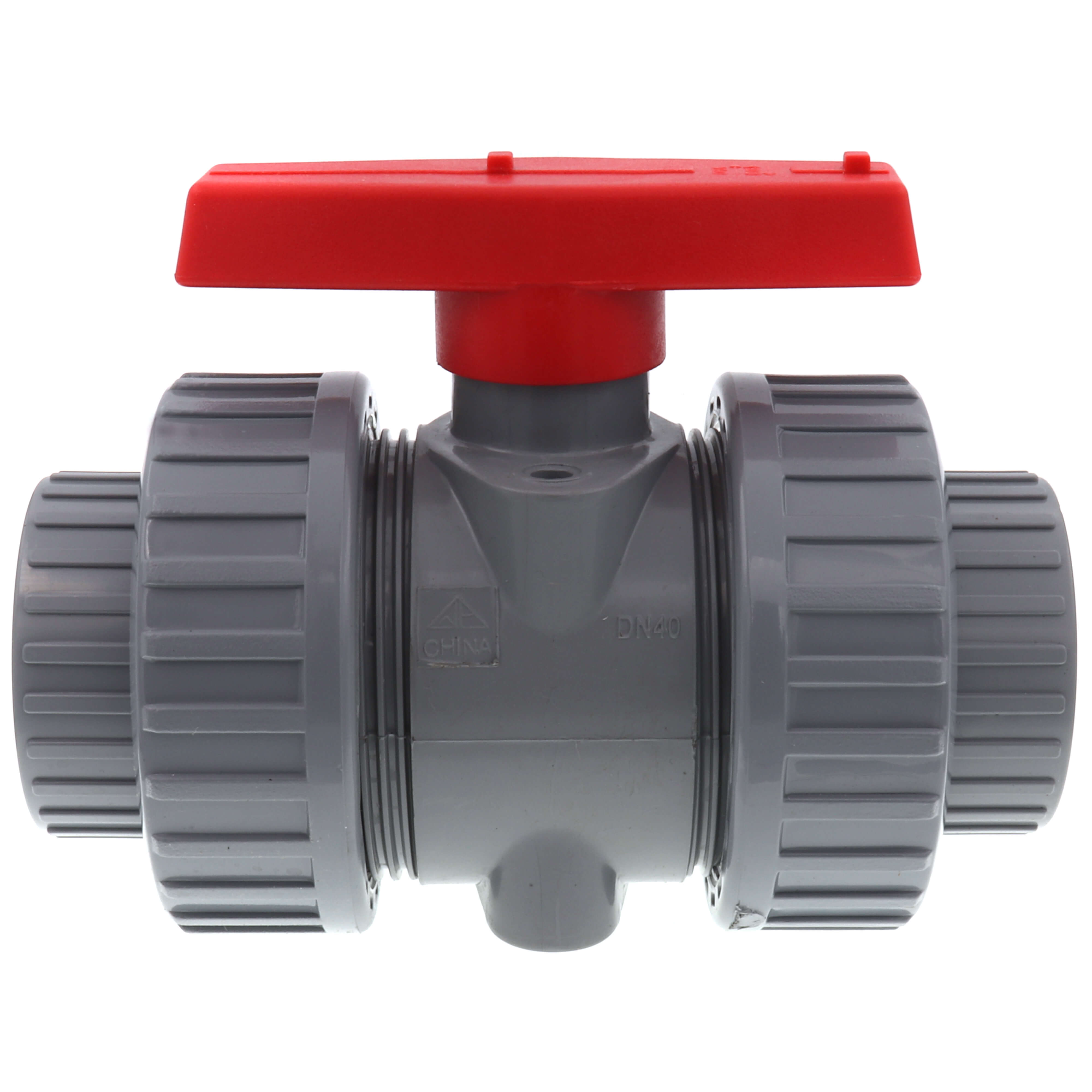

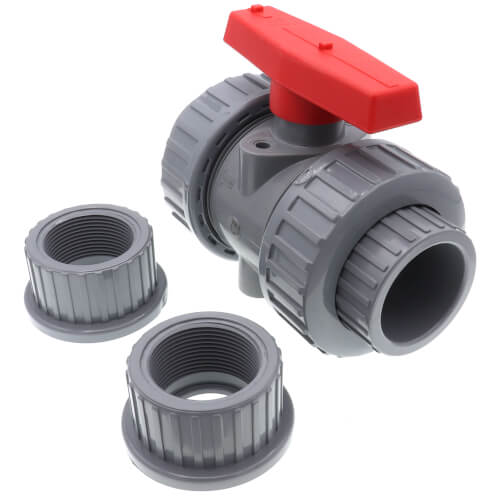

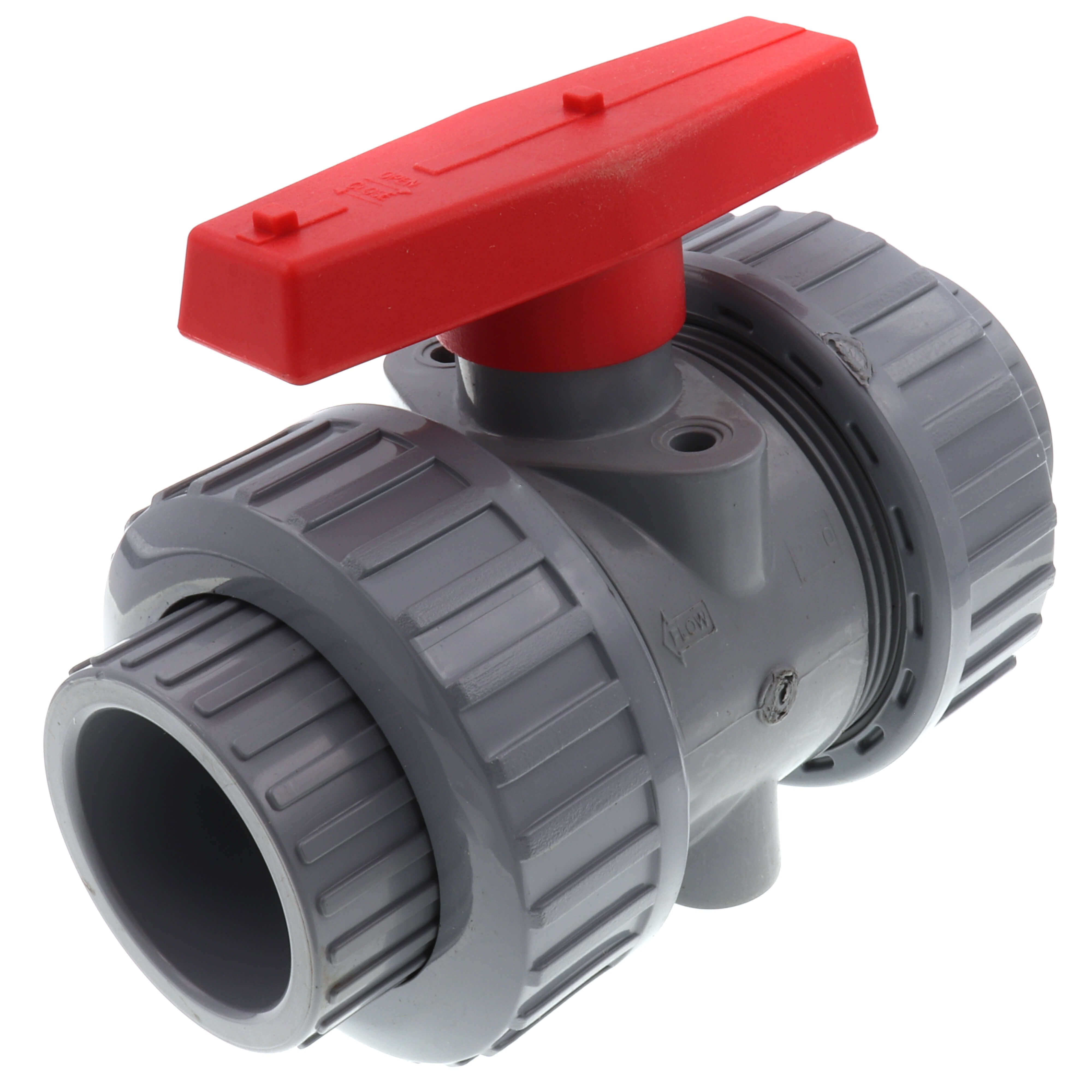

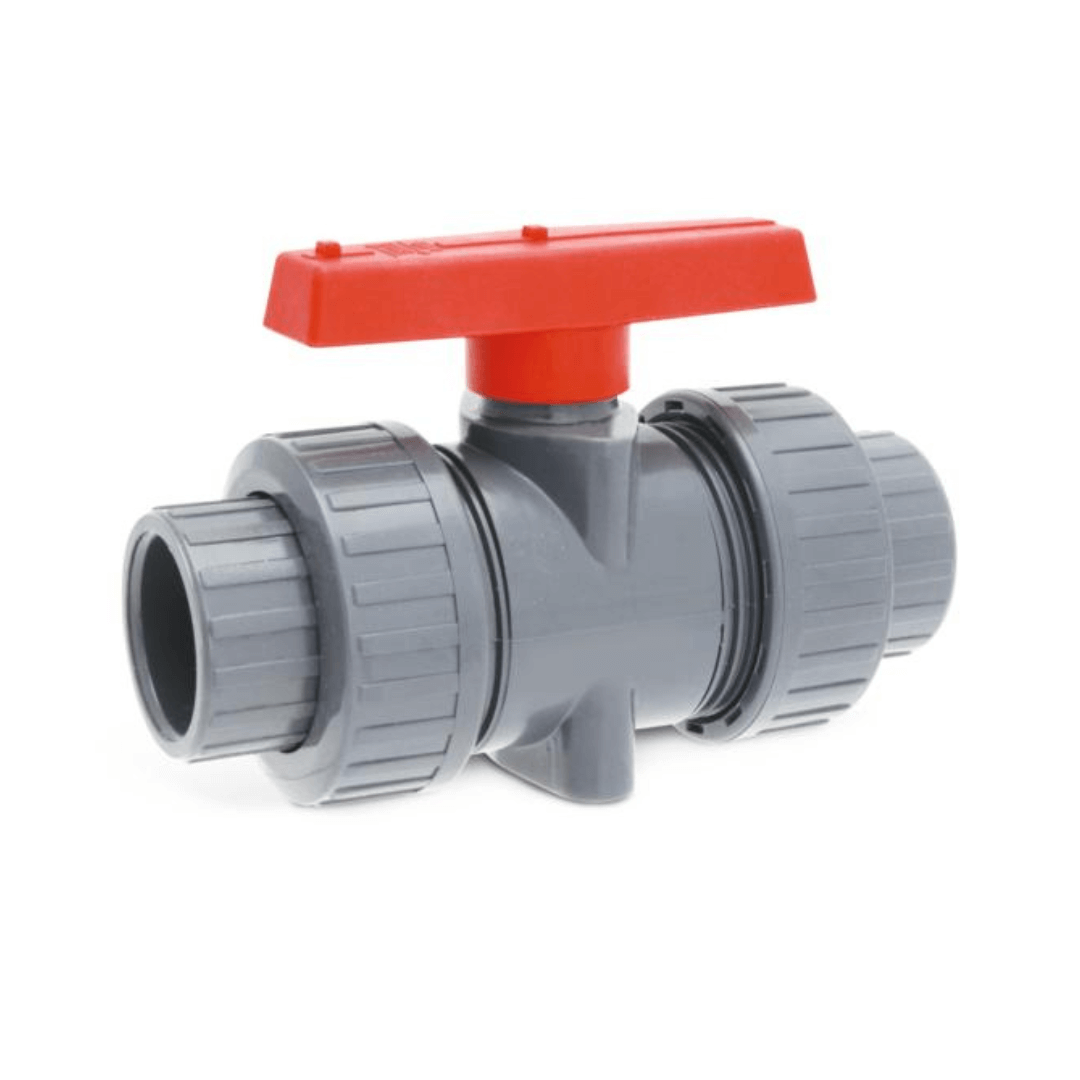

Hayward TBB2015CPEG TBB Series True Union Ball Valve 1-1/2 inches

Product Description

The HAYWARD TBB2015CPEG is a TBB Series true union ball valve. These valves are available in CPVC with EPDM o-rings and PTFE seats. It features socket and threaded end connections. Designed for easy maintenance and automation, this valve ensures reliable performance in various applications.

• 1-1/2" size
• True union ball valves
• Double O-Ring stem seal

Product Highlights

True union ball valve with socket and threaded end connections and EPDM o-rings.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: TBB2015CPEG

Technical Specifications

• Size: 1-1/2"
• Connection Type: Socket x FNPT
• MPN: TBB2015CPEG
• Manufacturer: Hayward
• Type: Ball Valve
• Style: True Union
• Series: TBB Series
• Valve Type: True Union Ball Valve
• Valve Size: 1-1/2"
• Valve Connection Type: Socket and Threaded
• Material: CPVC
• Seal Type: Double O-Ring Stem
• Seal Material: EPDM
• Seat Material: PTFE
• Port Type: Full
• Max Pressure: 225 PSI (10.3 bar) @ 70 degrees F (21 degrees C)
• UPC Code: 0610377091947
• Color: Light Gray
• Body Material: CPVC
• End Style: Socket/Thread
• Inlet to Outlet Length: 6.89 in
• Nominal Size: 1-1/2 In
• Orifice Size: 1-1/2 in
• Pressure Rating: 225 psi
• Softgoods Material: EPDM
• Temperature Rating: 70 deg F
• Top to Inlet Center: 3.43 in
• Trim Material: PTFE Seat
