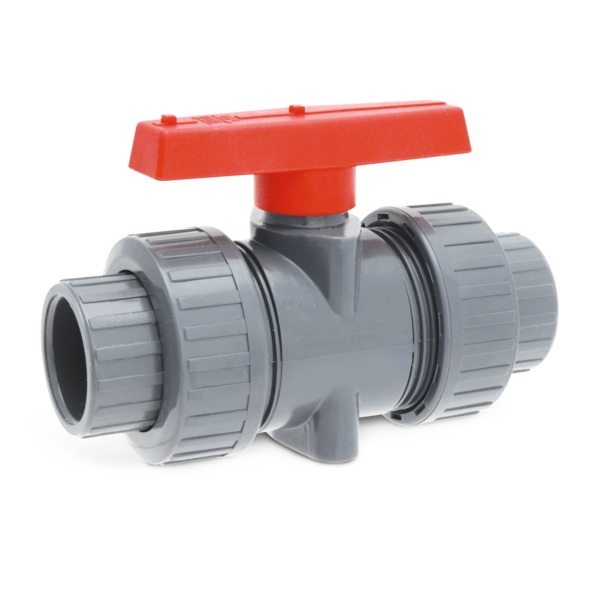

HAYWARD TBB2012CPFG 1-1/4 CPVC True Union Ball Valve w/FPM o-rings

Product Description

The HAYWARD TBB2012CPFG is a 1-1/4 CPVC True Union Ball Valve designed for effective fluid control in various applications.

• Socket/thread end style for easy connection
• Constructed with CPVC material
• Pressure rated up to 225 psi at seventy degrees Fahrenheit

Product Highlights

This valve is suitable for general service, commercial plumbing, and irrigation systems.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• Warranty: 2 Years

Technical Specifications

• Body Material: CPVC
• End Style: Socket/Thread
• Nominal Size: 1-1/4 inches
• Orifice Size: 1.18 inches
• Port Type: Full
• Pressure Rating: 225 psi
• Temperature Rating: 70 degrees Fahrenheit
• Inlet to Outlet Length: 6.61 inches
• Top to Inlet Center: 2.91 inches
• Softgoods Material: FPM
• Trim Material: PTFE Seat
