Hayward TBB2012CPEG TBB Series True Union Ball Valve 1-1/4 inches Replacement MPN

Product Description

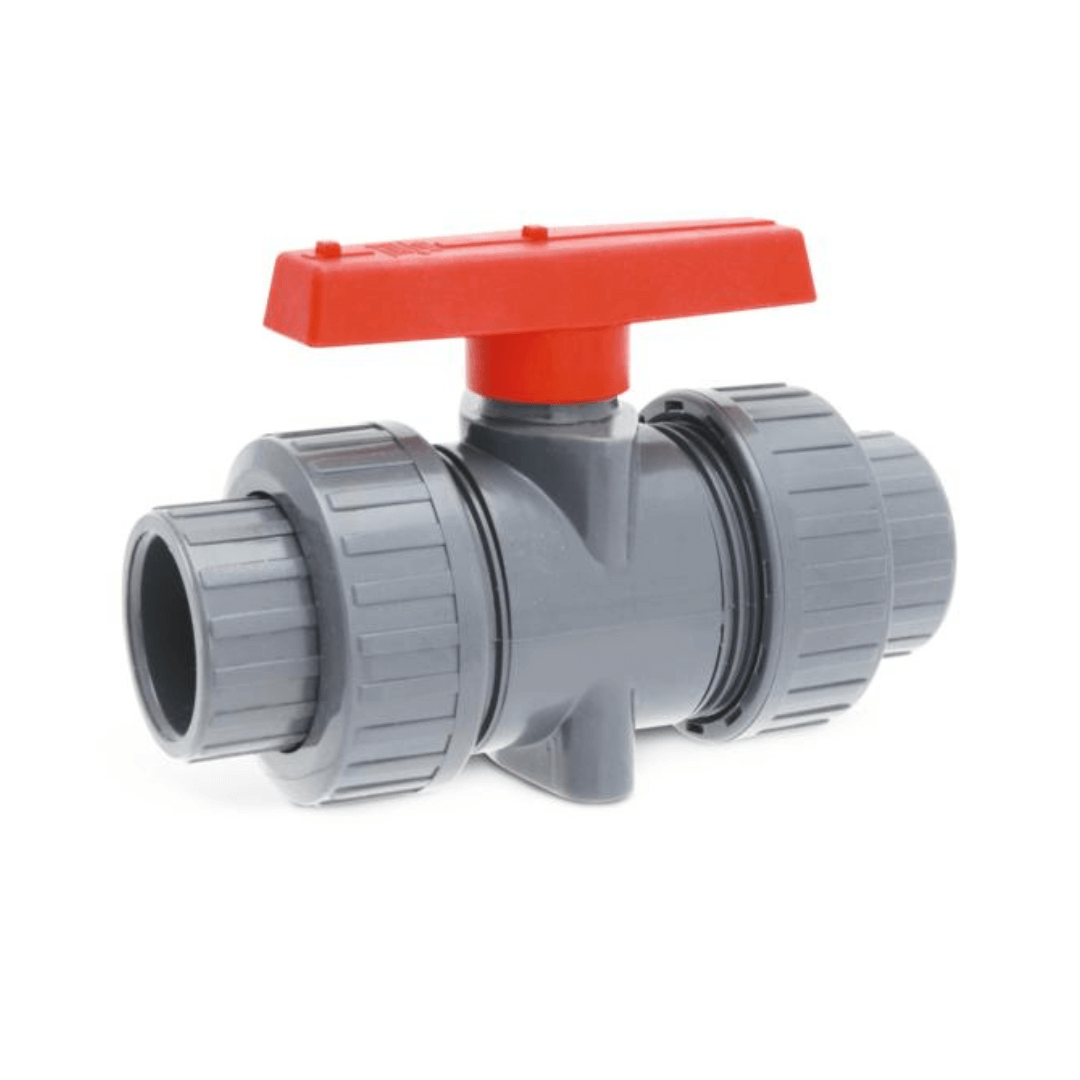

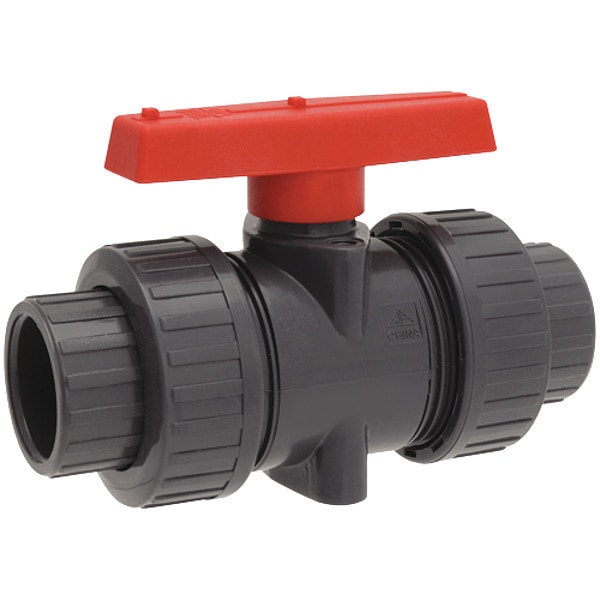

The HAYWARD TBB2012CPEG is a CPVC gray TBB Series true union ball valve with EPDM o-rings and PTFE seats. It features socket and threaded end connections. This ball valve is suitable for various applications with its full port design and adjustable seat retainer.

• 1-1/4" size
• Gray color
• Socket x FNPT connection type

Product Highlights

Durable CPVC material, EPDM seals, and PTFE seats ensure reliable performance in demanding environments.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: TBB2012CPEG
• Country of Origin: China

Technical Specifications

• Size: 1-1/4"
• Color: Gray
• Connection Type: Socket x FNPT
• Materials: PVC, CPVC, PP and PVDF
• Seals: FPM or EPDM
• Seats: PTFE
• Material Classes: PVC Cell Class 12454 per ASTM D1784, CPVC Cell Class 23447 per ASTM D1784, GFPP Cell Class 85580 per ASTM D4101, PVDF
• O-Ring Seals: FPM and EPDM
• Product Group: True-Union Ball Valve
• Manufacturer: Hayward Industrial
• Manufacturer's part number: TBB2012CPEG
• Brand: TBB
• Type: Ball Valve
• Material: CPVC
• Body Style: Inline True Union
• Ball Port Style: Full Port
• Valve Structure: 1 Piece
• Handle Type: T-Shaped
• Body Material: CPVC
• Temp. Range: 215 Degrees F
• Stem Type: O-Rings
• Stem Material: EPDM
• Max. Pressure: 225 PSI @ 70 Degrees F
• Pipe Size: 1-1/4 in
