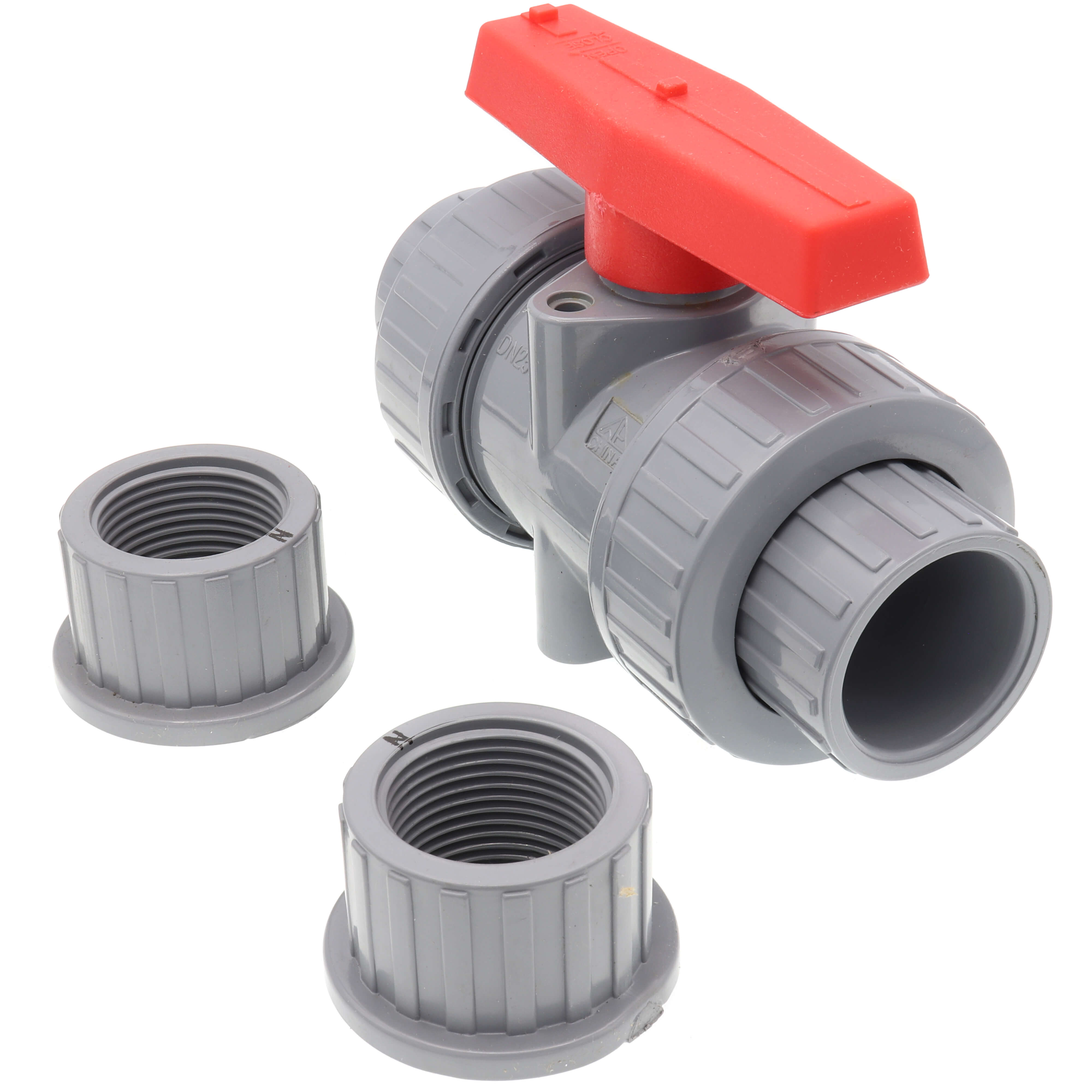

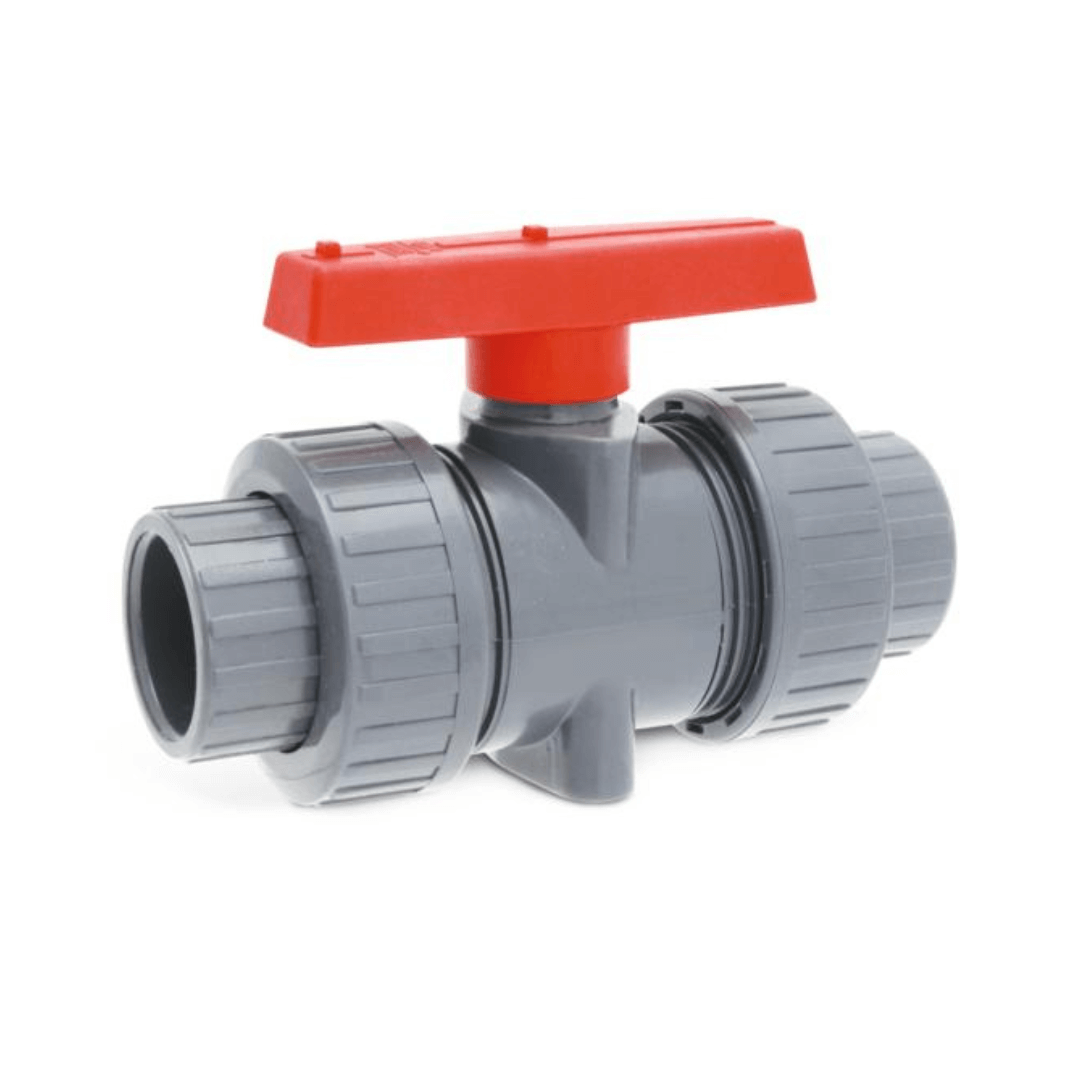

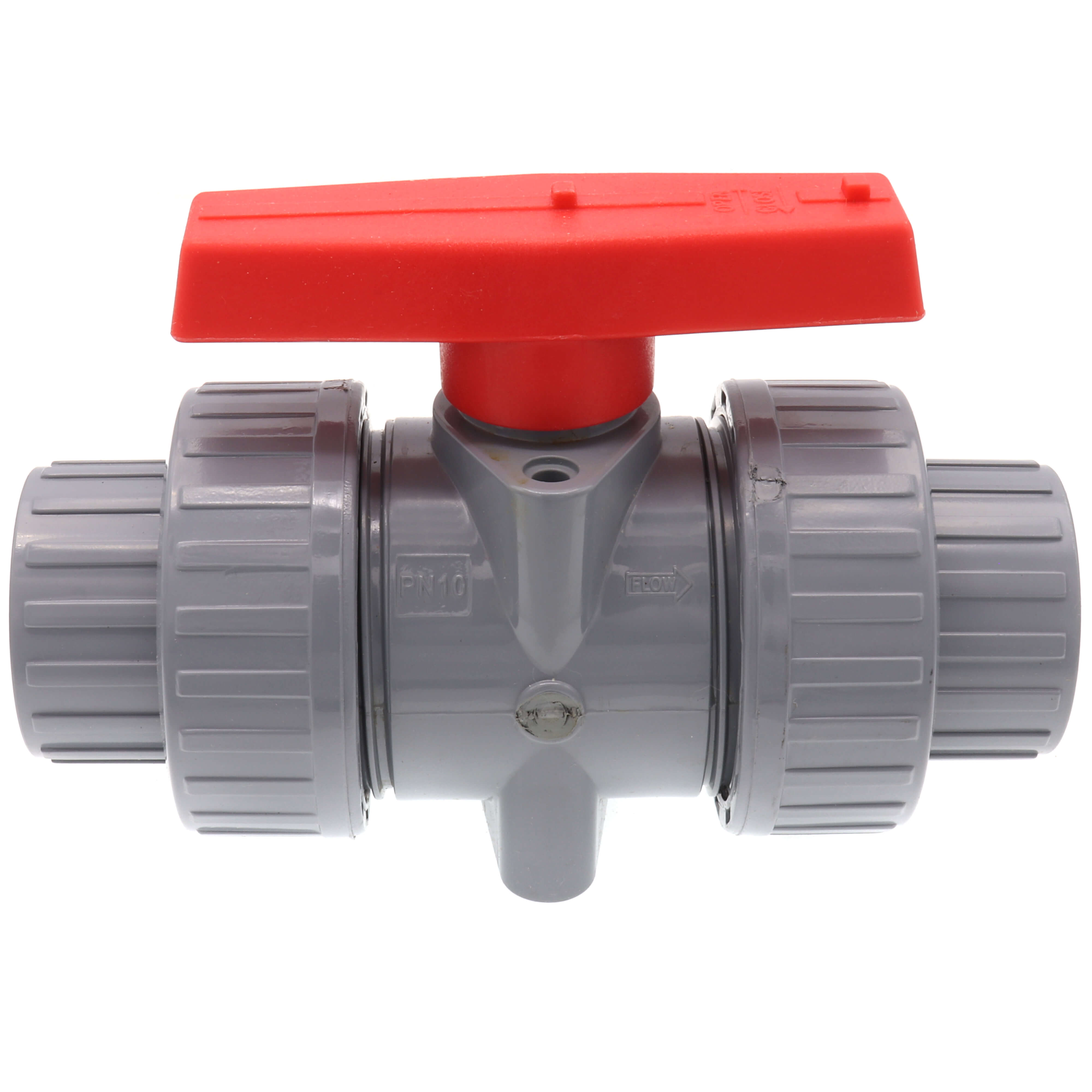

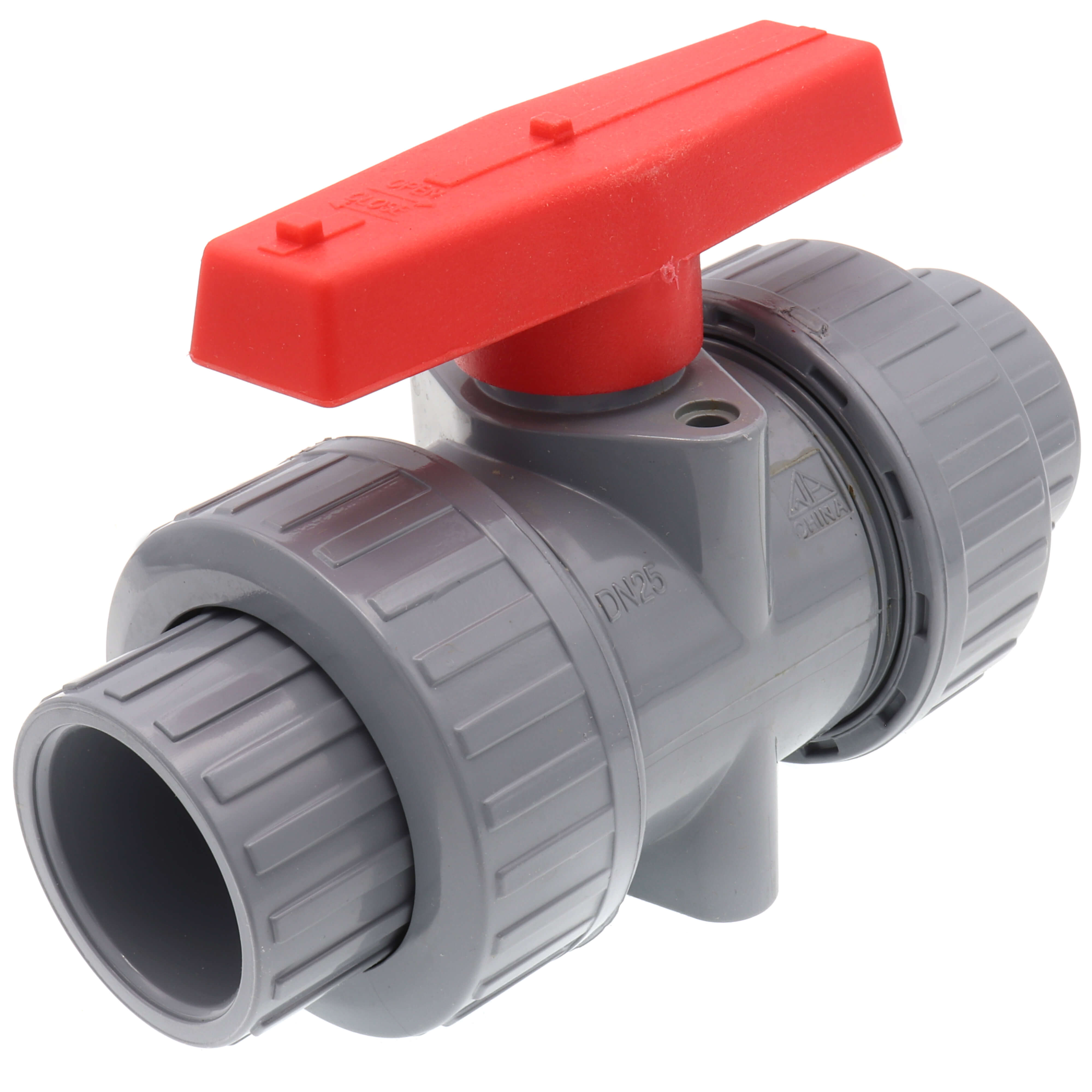

Hayward TBB2010CPEG TBB Series True Union Ball Valve 1 inches (Socket x Threaded)

Product Description

The HAYWARD TBB2010CPEG TBB Series true union ball valve features EPDM o-rings and PTFE seats. Offered in CPVC gray with socket and threaded end connections. TBB series true union ball valves are available in PVC, CPVC, PP and PVDF.

• CPVC Gray TBB Series true union ball valve
• EPDM o-rings
• Socket/threaded end connections

Product Highlights

This Hayward true union ball valve offers easy maintenance and can be easily automated. It features a double O-Ring stem seal and adjustable seat retainer.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: TBB2010CPEG

Technical Specifications

• Size: 1"
• Color: Gray
• Connection Type: Socket x FNPT
• Body Material: CPVC
• End Style: Socket/Thread
• Inlet to Outlet Length: 5.87 in
• Nominal Size: 1 In
• Orifice Size: 0.91 in
• Port Type: Full
• Pressure Rating: 225 psi
• Series: TBB Series
• Softgoods Material: EPDM
• Temperature Rating: 70 deg F
• Top to Inlet Center: 2.6 in
• Trim Material: PTFE Seat
• MPN: TBB2010CPEG
• Manufacturer: Hayward
• Type: Ball Valve
• Style: True Union
• Valve Type: True Union Ball Valve
• Valve Size: 1"
• Valve Connection Type: Socket and Threaded
• Material: CPVC
• Seal Type: Double O-Ring Stem
• Seal Material: EPDM
• Seat Material: PTFE
• Max Pressure: 225 PSI (10.3 bar) @ 70
