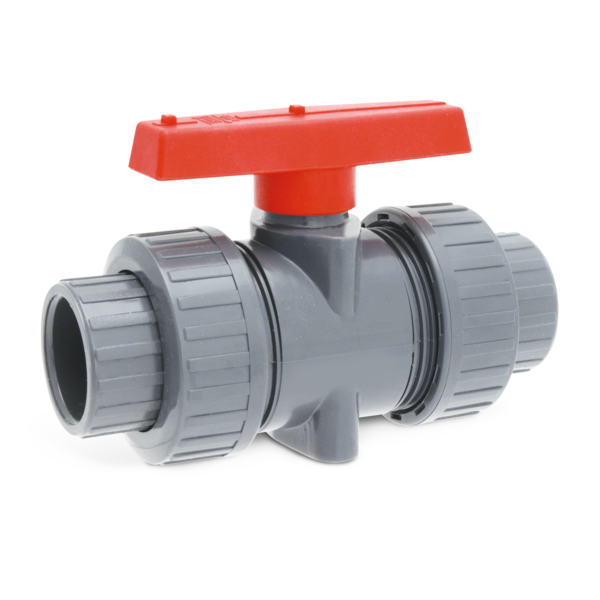

HAYWARD TBB2007CPFG 3/4 CPVC True Union Ball Valve w/FPM o-rings; socket/threaded end connect

Product Description

The HAYWARD TBB2007CPFG is a True Union Ball Valve designed for reliable fluid control. This valve features a three-quarter inch nominal size with socket and threaded end connections. It operates at a maximum pressure of 225 psi and is suitable for various applications including commercial plumbing, irrigation, and swimming pools.

• Easy maintenance
• Non-shock pressure rating of 225 psi
• Compatible with general service and water systems

Product Highlights

The HAYWARD TBB2007CPFG valve is created for durability and ease of use, making it an ideal choice for both professional and DIY projects.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• UPC: 610377092142

Technical Specifications

• Body Material: CPVC
• Color: Gray
• End Style: Socket/Thread
• Nominal Size: 3/4 in
• Orifice Size: 0.71 in
• Port Type: Full
• Pressure Rating: 225 psi
• Temperature Rating: 70 deg F
• Inlet to Outlet Length: 5.31 in
• Top to Inlet Center: 2.24 in
• Trim Material: PTFE Seat
• Softgoods Material: FPM
• Series: TBB
