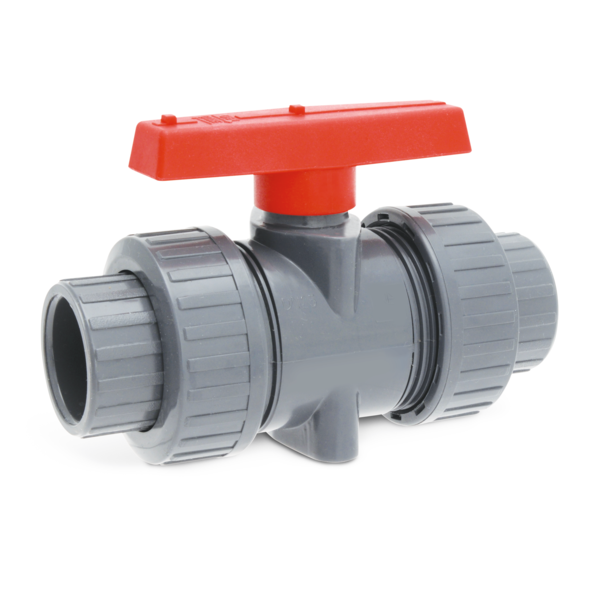

HAYWARD TBB2005CPFG 1/2 CPVC True Union Ball Valve w/FPM o-rings; socket/threaded end connect

Product Description

The HAYWARD TBB2005CPFG is a 1/2 inch CPVC True Union Ball Valve. This valve features a socket/thread end style and operates at a maximum pressure of 225 psi at sixty-eight degrees Fahrenheit. The full port provides efficient flow with a nominal size of one-half inch and orifice size of zero point five one inches.

• Easy maintenance
• Double O-Ring stem seal
• Adjustable seat retainer

Product Highlights

This valve is suitable for general service, commercial plumbing, irrigation, swimming pools, and aquariums.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• Series: TBB

Technical Specifications

• Body Material: CPVC
• Color: Gray
• End Style: Socket/Thread
• Inlet to Outlet Length: 4.49 inches
• Nominal Size: 1/2 inch
• Orifice Size: 0.51 inches
• Port Type: Full
• Pressure Rating: 225 psi
• Softgoods Material: FPM
• Temperature Rating: 70 degrees Fahrenheit
• Top to Inlet Center: 1.85 inches
• Trim Material: PTFE Seat
