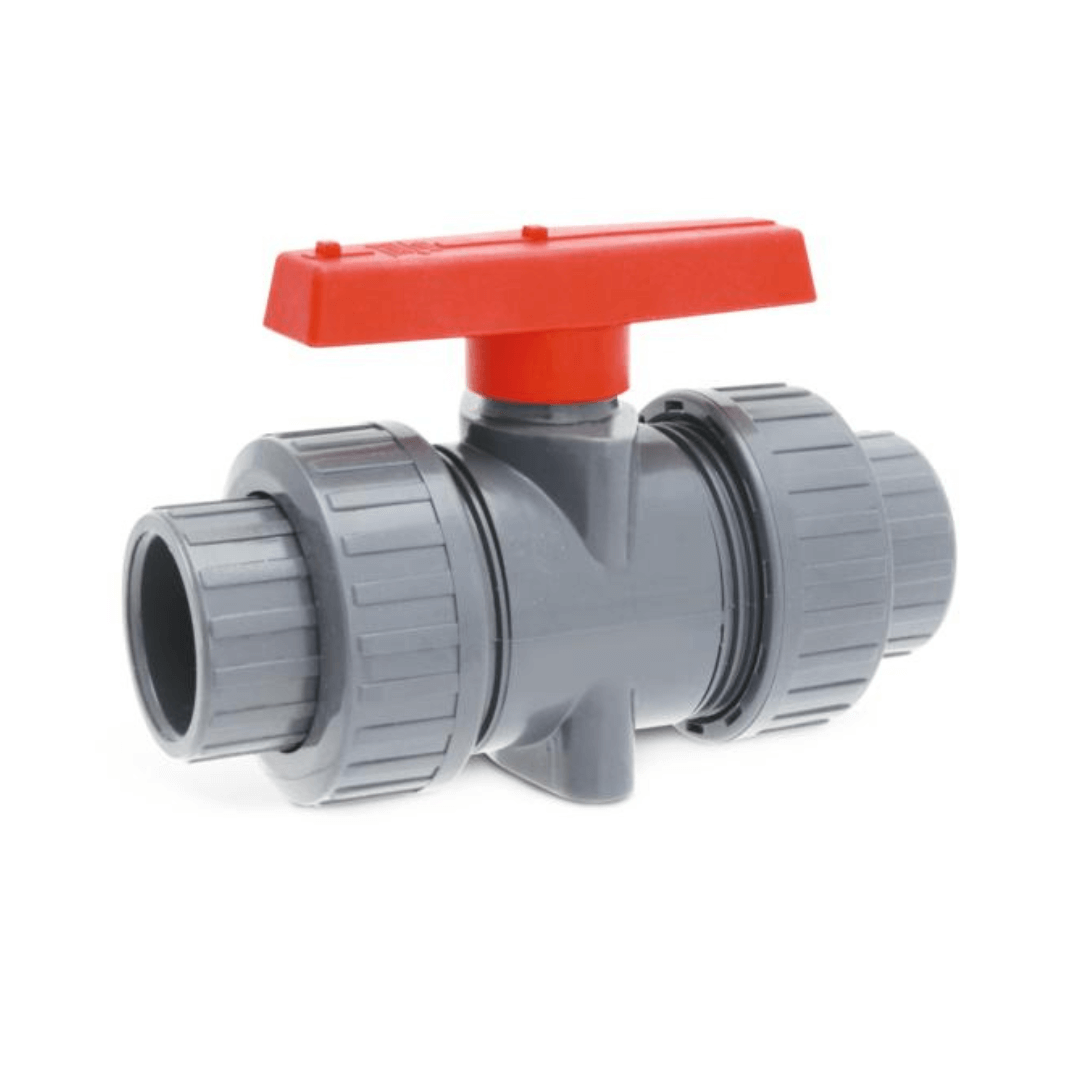

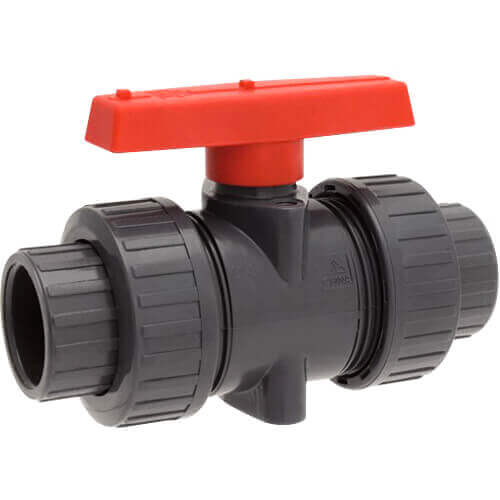

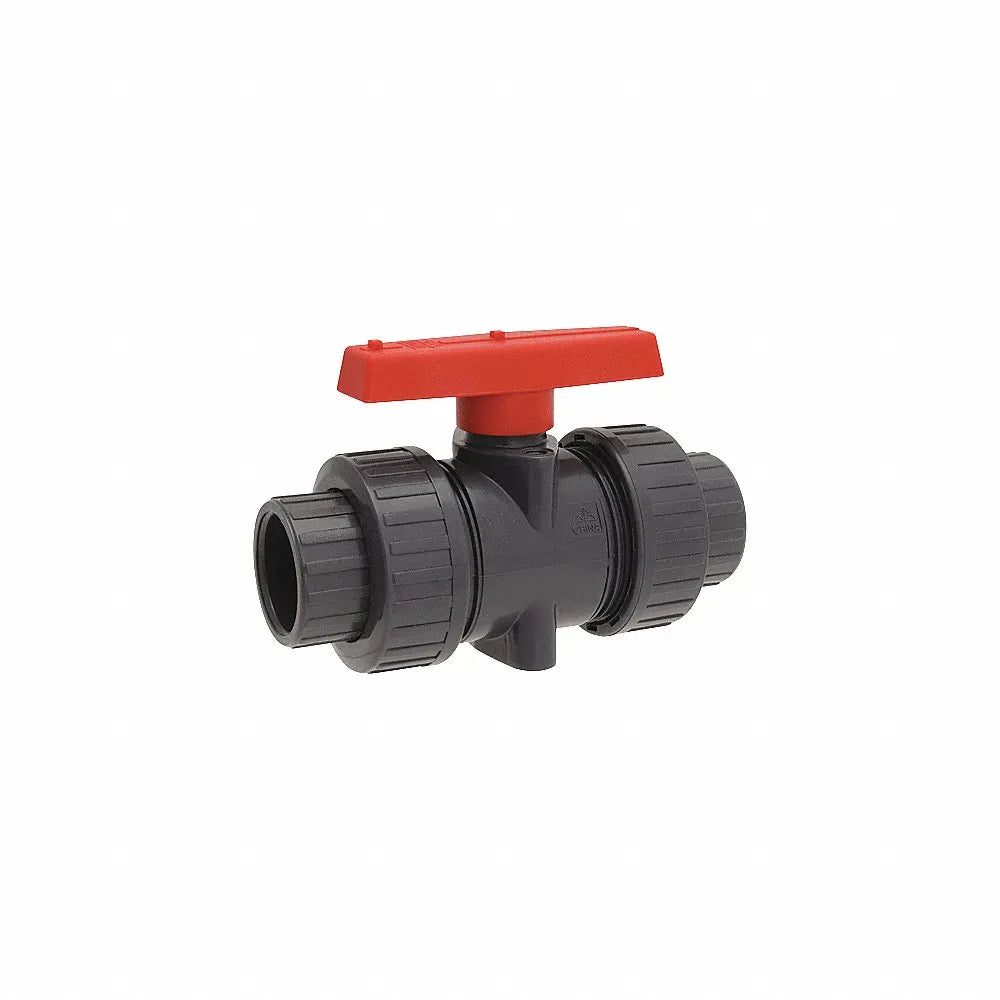

Hayward TBB2005CPEG True Union Ball Valve 1/2 inches (Socket x Threaded)

Product Description

The HAYWARD TBB2005CPEG is a true union ball valve with EPDM O-rings and PTFE seats. It features socket and threaded end connections. This valve is designed for easy maintenance and can be easily automated. Suitable for use with PVC, CPVC, PP, and PVDF materials.

• CPVC Gray TBB Series
• True union ball valve
• EPDM o-rings

Product Highlights

This Hayward true union ball valve offers reliable flow control with its durable construction and versatile connection options.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: TBB2005CPEG
• Country of Origin: China

Technical Specifications

• Size: 1/2"
• Connection Type: Socket x FNPT
• Body Material: CPVC
• End Style: Socket/Thread
• Inlet to Outlet Length: 4.49 in
• Nominal Size: 1/2 In
• Orifice Size: 0.51 in
• Port Type: Full
• Pressure Rating: 225 psi
• Series: TBB
• Softgoods Material: EPDM
• Temperature Rating: 70 deg F
• Top to Inlet Center: 1.85 in
• Trim Material: PTFE Seat
• Brand: Hayward
• MPN: Tbb2005cpeg
• Diameter: 1/2 in
• Country of Origin: China
