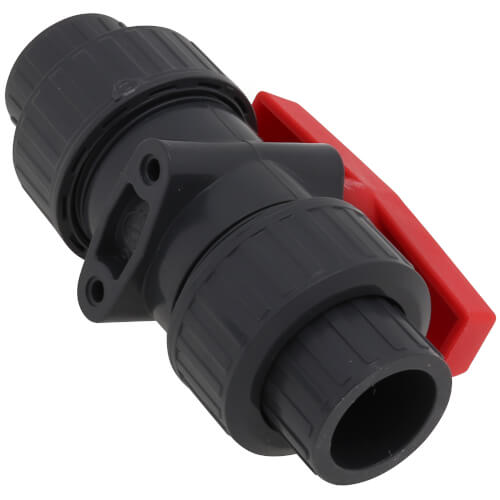

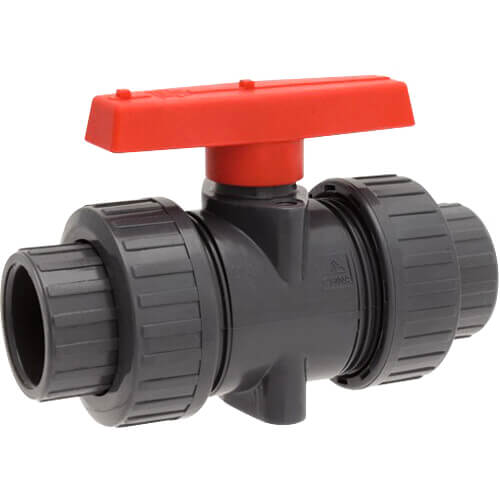

Hayward TBB1030SPEG 3 PVC True Union Ball Valve with EPDM O-Rings

Product Description

The Hayward TBB1030SPEG is a three-inch PVC true union ball valve designed for various plumbing applications. This valve features socket end connections and EPDM O-rings for effective sealing.

• Designed for up to 225 psi at seventy degrees Fahrenheit.
• Includes easy maintenance features and is easily automated.
• Made from durable PVC with PTFE seat trim.

Product Highlights

This valve is suitable for general service, commercial plumbing, irrigation, and applications in swimming pools and aquariums.

Product Information

Standard Information

• Manufacturer: Hayward Industrial Products
• UPC: 610377092999

Technical Specifications

• Body Material: PVC
• Color: Gray
• End Style: Socket
• Inlet to Outlet Length: 11.97 inches
• Nominal Size: 3 inches
• Orifice Size: 2.7 inches
• Port Type: Full
• Pressure Rating: 225 psi
• Series: TBB
• Softgoods Material: EPDM
• Temperature Rating: 70 degrees Fahrenheit
• Top to Inlet Center: 5.12 inches
• Trim Material: PTFE Seat
