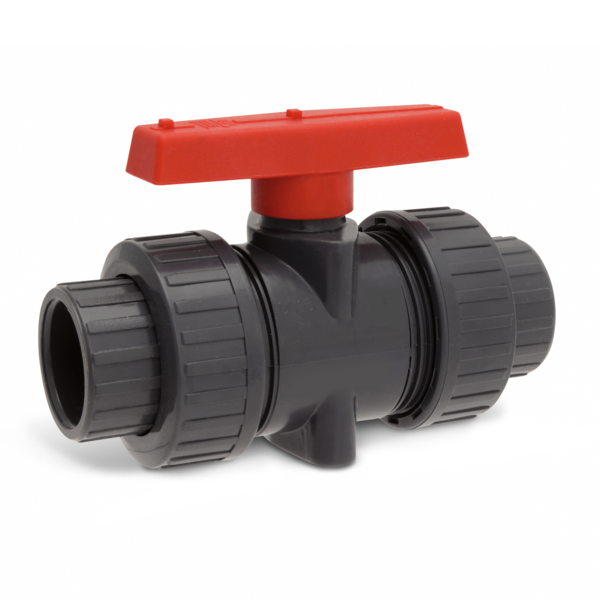

Hayward TBB1025SPEG 2-1/2 PVC True Union Ball Valve w/EPDM O-Ring

Product Description

The Hayward TBB1025SPEG is a 2-1/2 inch PVC True Union Ball Valve designed for reliable performance in plumbing systems. This valve features socket and threaded end connections, making it versatile for various applications. It is rated for up to 225 psi at seventy degrees Fahrenheit. The valve is constructed with PVC body and PTFE seat trim, ensuring durability and longevity.

• Socket and threaded end connections
• EPDM O-rings for leak resistance
• Full port design for maximum flow

Product Highlights

This valve is suitable for general service in commercial plumbing, irrigation, swimming pools, and aquariums.

Product Information

Standard Information

• Body Material: PVC
• Manufacturer: Hayward Industrial Products

Technical Specifications

• Nominal Size: 2-1/2 inches
• Orifice Size: 2.4 inches
• Pressure Rating: 225 psi
• Temperature Rating: 70 degrees Fahrenheit
• Inlet to Outlet Length: 10.83 inches
• Top to Inlet Center: 4.57 inches
• Softgoods Material: EPDM
• Trim Material: PTFE Seat
