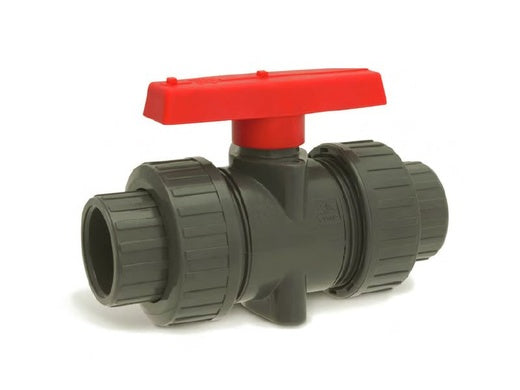

HAYWARD TBB1012CPEG 1-1/4 PVC True Union Ball Valve w/EPDM O-Rings; socket/threaded

Product Description

The HAYWARD TBB1012CPEG is a 1-1/4 inch PVC True Union Ball Valve designed for reliable connections in various applications. This valve features socket and threaded end styles, suitable for quick installation and maintenance. The valve operates under a pressure rating of 225 psi and is rated for use at temperatures up to 70 degrees Fahrenheit.

• PVC body with PTFE seat trim
• EPDM o-rings for a secure seal
• Designed for general service across various plumbing applications

Product Highlights

This valve is easy to maintain and automated, thanks to the double O-ring stem seal. It is suited for general service in commercial plumbing, irrigation, swimming pools, and aquariums.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• Series: TBB

Technical Specifications

• Body Material: PVC
• Color: Gray
• End Style: Socket/Thread
• Inlet to Outlet Length: 6.61 inches
• Nominal Size: 1-1/4 inches
• Orifice Size: 1.18 inches
• Port Type: Full
• Pressure Rating: 225 psi
• Softgoods Material: EPDM
• Temperature Rating: 70 degrees Fahrenheit
• Top to Inlet Center: 2.91 inches
• Trim Material: PTFE Seat
