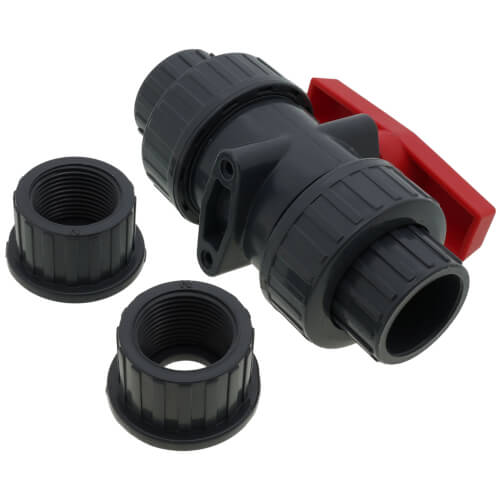

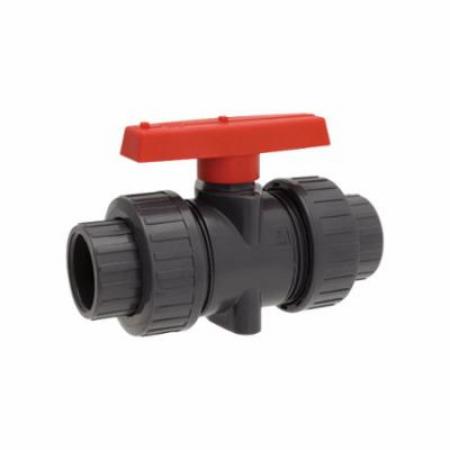

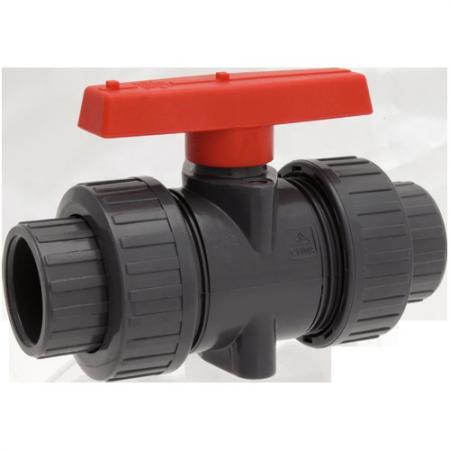

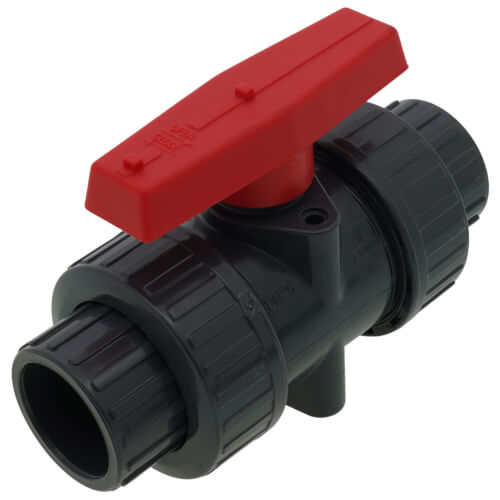

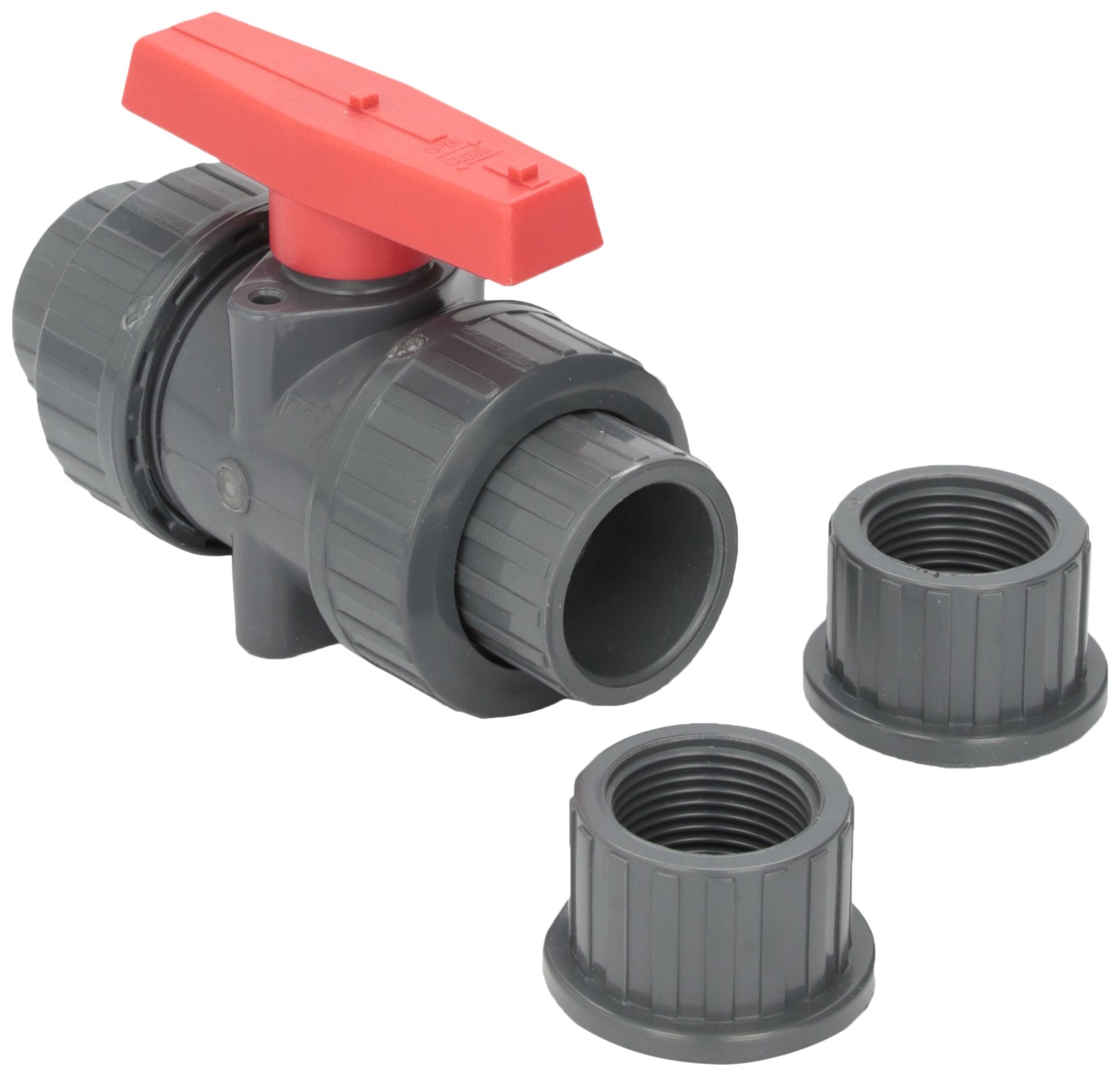

Hayward TBB1010CPEG 1-Inch True Union Ball Valve Gray

Product Description

The Hayward TBB1010CPEG 1-Inch True Union Ball Valve is designed for efficient flow control in pool and plumbing applications. It features EPDM O-rings and socket/threaded end connections. The durable PVC body and PTFE seat ensure long-lasting performance.

• 1-inch nominal size
• Socket/threaded end style
• 225 psi pressure rating

Product Highlights

This Hayward ball valve allows for easy on/off flow control. The true union design enables simple removal without disrupting piping. Suitable for various applications including pools and plumbing.

Product Information

Standard Information

• Brand: Hayward
• MPN: TBB1010CPEG

Technical Specifications

• Body Material: PVC
• Color: Gray
• End Style: Socket/Thread
• Inlet to Outlet Length: 5.87 inches
• Nominal Size: 1 inch
• Orifice Size: 0.91 inches
• Port Type: Full
• Pressure Rating: 225 psi
• Series: TBB
• Softgoods Material: EPDM
• Temperature Rating: 70 degrees Fahrenheit
• Top to Inlet Center: 2.6 inches
• Trim Material: PTFE Seat
