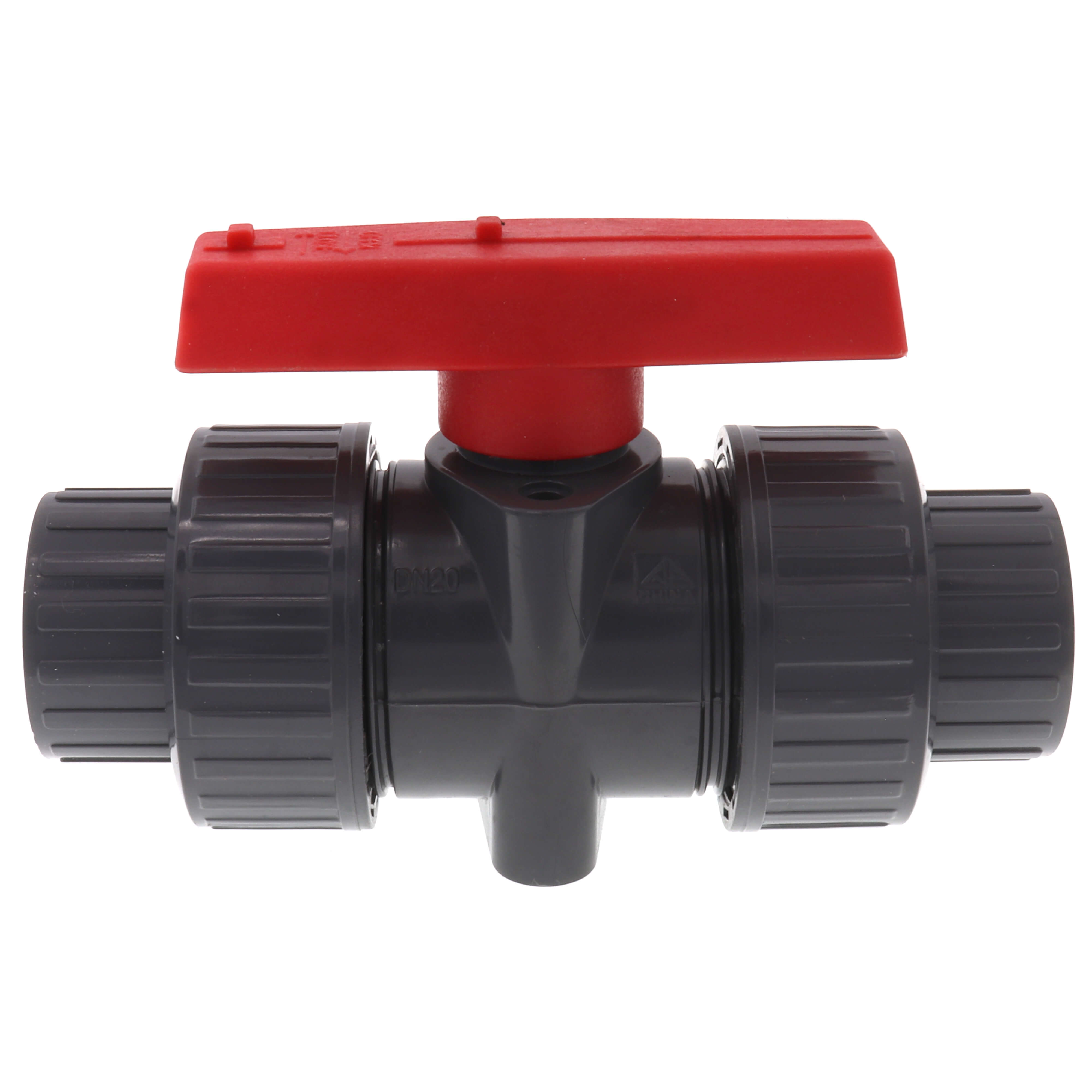

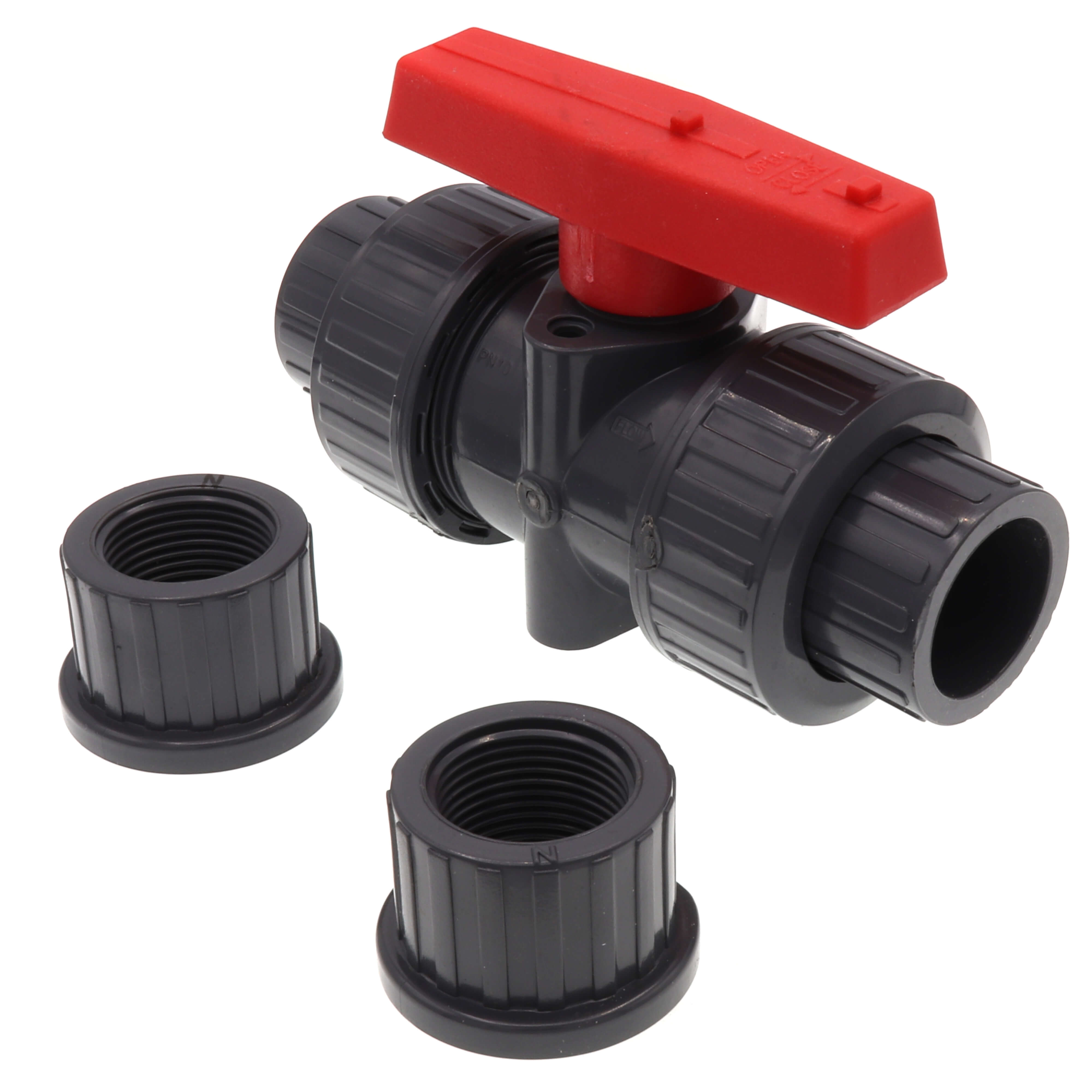

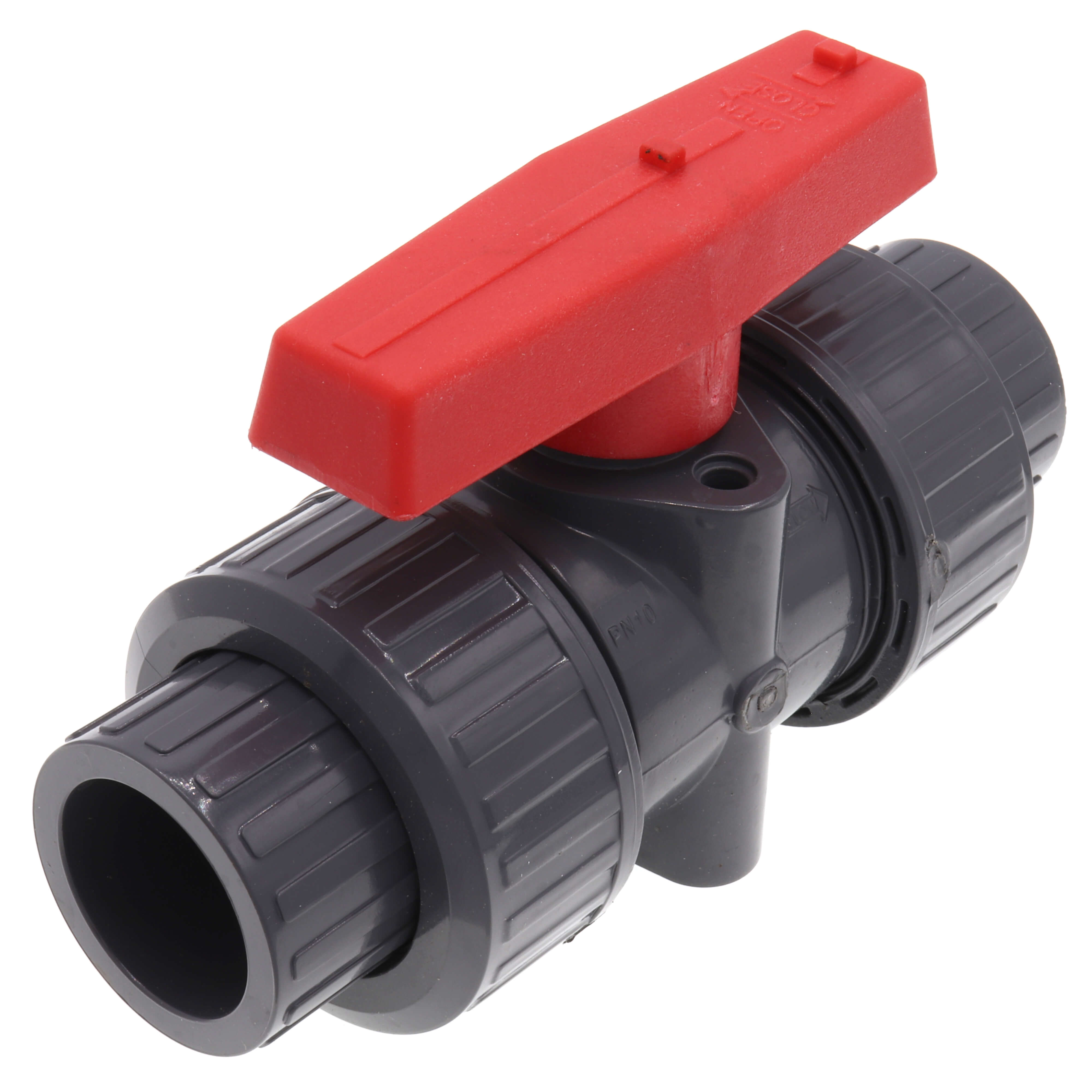

Hayward TBB1007CPEG True Union Ball Valve PVC 3/4 Inch Socket/Threaded End

Product Description

The Hayward TBB1007CPEG is a high-quality 3/4-inch true union ball valve constructed from durable gray PVC. Designed for various industrial applications, this valve features EPDM O-rings and a socket/threaded end connection for ease of use and installation.

• True union design allows easy removal from system
• EPDM O-rings for reliable sealing
• Made of durable PVC material

Product Highlights

This valve is perfect for controlling flow in plumbing, irrigation, and pool systems. It meets ASTM and NSF standards, ensuring reliable performance and safety. The double O-ring stem seals provide extra durability and leak prevention.

Product Information

Standard Information

• Brand: Hayward
• Model: TBB1007CPEG

Technical Specifications

• Nominal Size: 3/4 inch
• End Style: Socket/Thread
• Pressure Rating: 225 psi
• Temperature Rating: 70 degrees Fahrenheit
• Orifice Size: 0.71 inch
• Inlet to Outlet Length: 5.31 inches
• Top to Inlet Center: 2.24 inches
• Body Material: PVC
• Trim Material: PTFE Seat
• Softgoods Material: EPDM
• Color: Gray
