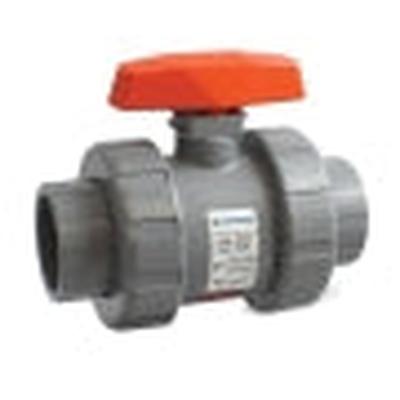

HAYWARD TB2250SE 2-1/2 CPVC True Union Ball Valve w/EPDM o-rings

Product Description

The HAYWARD TB2250SE is a 2-1/2 inch CPVC True Union Ball Valve with EPDM o-rings and socket end connections. It is designed for reliable flow control in various applications such as water treatment, chemical processing, and swimming pools.

• Double o-ring stem seal for improved reliability
• Easily automated for use in various systems
• Pressure rated up to 235 psi at 70 degrees F

Product Highlights

This valve is ideal for water and wastewater treatment, aquaculture, and corrosive applications. It ensures a strong connection and smooth operation.

Product Information

Standard Information

• Body Material: CPVC
• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS

Technical Specifications

• Nominal Size: 2-1/2 inches
• Orifice Size: 2-3/4 inches
• End Style: Socket
• Inlet to Outlet Length: 10.68 inches
• Top to Inlet Center: 6.46 inches
• Pressure Rating: 235 psi
• Temperature Rating: 70 degrees F
• Trim Material: PTFE Seat
• Softgoods Material: EPDM
