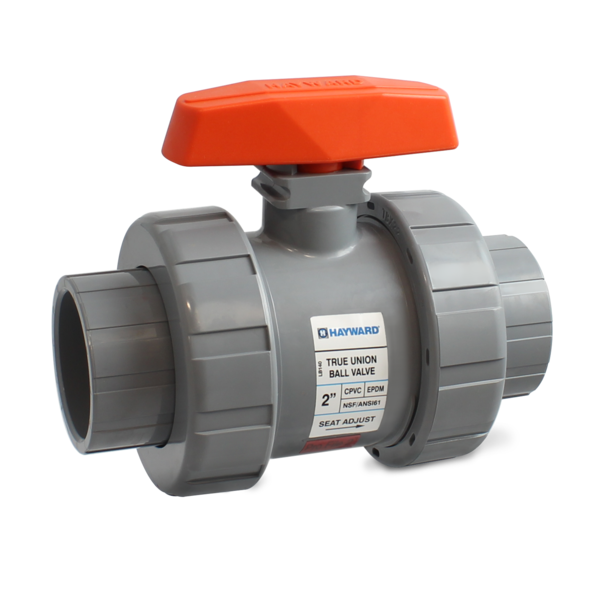

HAYWARD TB2200STE 2 CPVC True Union Ball Valve w/EPDM o-rings socket/threaded end connecti

Product Description

The HAYWARD TB2200STE is a two-inch CPVC true union ball valve designed for socket and threaded end connections. This valve operates effectively at a pressure rating of 250 psi and temperature ranges from thirty-four to one hundred eighty degrees Fahrenheit. It features a T-handle actuator for ease of use and quick operation, making it suitable for various plumbing and industrial applications.

• Material construction of CPVC with EPDM O-ring seals for durability.
• Designed with a full port for maximum flow.
• Assembly uses silicone-free lubricant and includes PTFE seats.

Product Highlights

This true union ball valve is ideal for applications where a tight seal and reliable performance are required.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• Actuator Type: T-Handle

Technical Specifications

• Ball Material: CPVC
• Body Material: CPVC
• End Style: Socket/Thread
• Inlet to Outlet Length: 8 inches
• Nominal Size: 2 inches
• Port Type: Full
• Pressure Rating: 250 psi
• Series: TB Series
• Softgoods Material: EPDM
• Temperature Rating: 34 to 180 degrees Fahrenheit
• Top to Inlet Center: 4.43 inches
• Trim Material: PTFE Seat
