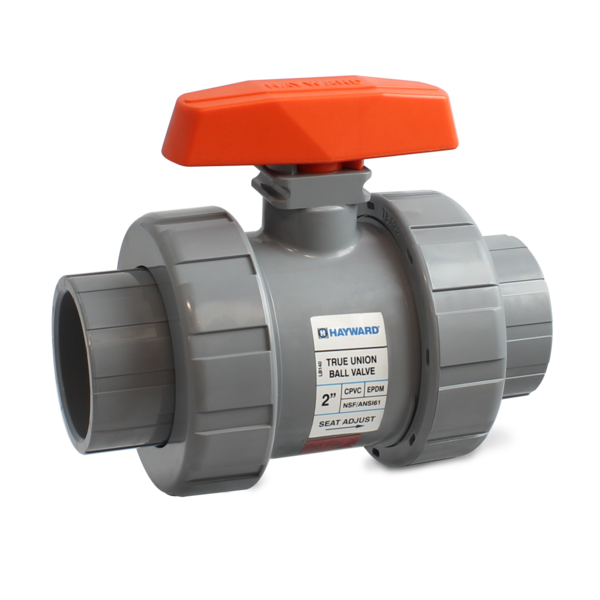

HAYWARD TB2200ST 2 CPVC True Union Ball Valve w/FPM o-rings; socket/threaded end connection

Product Description

The HAYWARD TB2200ST is a 2 inch CPVC True Union Ball Valve designed for reliable performance. This valve features socket and threaded ends for secure connections, suited for various plumbing applications. It maintains a pressure rating of 250 psi and operates within a temperature range of thirty-four to one hundred eighty degrees Fahrenheit.

• True union design for easy maintenance
• CPVC construction for chemical resistance
• T-handle actuator for manual operation

Product Highlights

This valve includes FPM o-rings and PTFE seat trim, ensuring durability and leak-proof performance.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• MPN: TB2200ST

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• End Style: Socket/Thread
• Inlet to Outlet Length: 8 inches
• Nominal Size: 2 inches
• Port Type: Full
• Pressure Rating: 250 psi
• Series: TB Series
• Softgoods Material: FPM
• Temperature Rating: 34 to 180 degrees Fahrenheit
• Top to Inlet Center: 4.43 inches
• Trim Material: PTFE Seat
