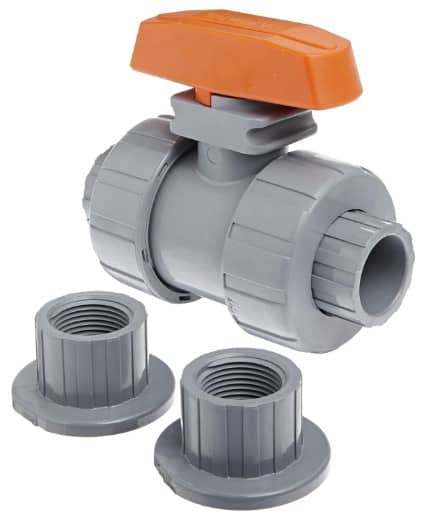

HAYWARD TB2075STE 3/4 CPVC True Union Ball Valve w/EPDM o-rings; socket/threaded end connec

Product Description

The HAYWARD TB2075STE is a 3/4 inch CPVC true union ball valve designed for various fluid handling applications. This valve features socket and threaded end styles and operates efficiently at up to 250 psi at seventy degrees Fahrenheit. The body is made of CPVC, ensuring durability and resistance to corrosion. This product is ideal for industrial use in water treatment, chemical processing, and food and beverage systems.

• Double O-ring stem seal for reliable sealing
• Easy to service and maintain
• Compatible with automation systems

Product Highlights

The valve is suitable for a wide range of applications including swimming pools, aquaculture, and pharmaceutical industries.

Product Information

Standard Information

• Brand: HAYWARD INDUSTRIAL PRODUCTS
• MPN: TB2075STE

Technical Specifications

• Body Material: CPVC
• End Style: Socket/Thread
• Inlet to Outlet Length: 4.85 inches
• Nominal Size: 3/4 inches
• Orifice Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 250 psi
• Temperature Rating: 70 degrees Fahrenheit
• Softgoods Material: EPDM
• Trim Material: PTFE Seat
• Top to Inlet Center: 3.02 inches
