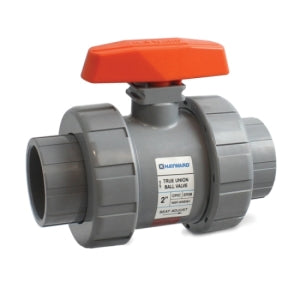

HAYWARD TB2050STE 1/2 CPVC True Union Ball Valve w/EPDM o-rings; socket/threaded end connec

Product Description

The HAYWARD TB2050STE is a 1/2 CPVC True Union Ball Valve designed for various plumbing applications. It features a socket/threaded end style for easy installation. With a pressure rating of two hundred fifty psi, this valve operates effectively in temperature ranges from thirty-four to one hundred eighty degrees Fahrenheit. The valve includes a T-handle actuator for straightforward operation, and the CPVC body ensures durability against harsh chemicals.

• EPDM o-rings enhance sealing efficiency.
• Full port design for unrestricted flow.
• Silicone-free lubricant used in assembly.

Product Highlights

This valve offers reliable performance for both residential and industrial applications. The full port design minimizes pressure drops and increases flow rates.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• Nominal Size: 1/2 in

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• End Style: Socket/Thread
• Inlet to Outlet Length: 4.77 in
• Port Type: Full
• Pressure Rating: 250 psi
• Series: TB Series
• Softgoods Material: EPDM
• Temperature Rating: 34 to 180 deg F
• Top to Inlet Center: 2.81 in
• Trim Material: PTFE Seat
