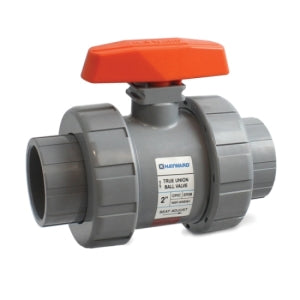

HAYWARD TB2050ST 1/2 CPVC True Union Ball Valve w/FPM o-rings; socket/threaded end connect

Product Description

The HAYWARD TB2050ST is a true union ball valve designed for reliable flow control in plumbing systems. This valve features a nominal size of one half inch and is built from CPVC, providing durability and resistance to corrosion. It operates within a pressure rating of 250 psi and can handle temperatures ranging from thirty-two to one hundred ninety degrees Fahrenheit. The socket and threaded end connections make installation straightforward and adaptable to various applications.

• Full port design for maximum flow
• Lever operated actuator for ease of use
• Constructed with EPDM/FKM o-rings for longevity

Product Highlights

This valve is ideal for use with gas, oil, and water applications. Its full port design ensures minimal pressure drop, making it suitable for a wide range of tasks in both residential and commercial settings.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• UPC: 610377326407

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: PVC
• Body Material: CPVC
• End Style: Socket x Thread
• Inlet to Outlet Length: 4.63 inches
• Media: Gas/Oil/Water
• Nominal Size: 1/2 inch
• Port Type: Full
• Pressure Rating: 250 psi
• Series: TB Series
• Softgoods Material: EPDM/FKM
• Temperature Rating: 32 to 190 degrees Fahrenheit
• Top to Inlet Center: 3 inches
• Trim Material: PVC Stem and PTFE Seat
