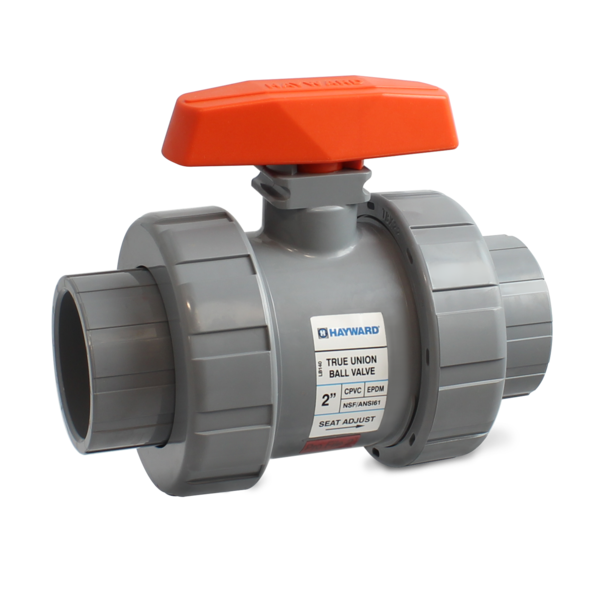

HAYWARD TB1200ST 2 PVC True Union Ball Valve w/FPM o-rings; socket/threaded end connection

Product Description

The HAYWARD TB1200ST features a two-inch PVC True Union Ball Valve designed for various applications. This valve has a socket and threaded end connection. It can handle pressures up to 250 psi and operates within a temperature range of thirty-two to one hundred ninety degrees Fahrenheit. The valve is suitable for media such as gas, oil, and water. Its full port design ensures minimal pressure drop and maximum flow.

• EPDM and FPM o-rings provide durability
• Lever-operated actuator for easy handling
• Manufactured from PVC for chemical resistance

Product Highlights

Ideal for plumbing and industrial applications, this valve is built for reliable service and efficient fluid control.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• UPC: 610377327824

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: PVC
• Body Material: PVC
• Inlet to Outlet Length: 7.99 inches
• Media: Gas/Oil/Water
• Nominal Size: 2 inches
• Orifice Size: 2 inches
• Port Type: Full
• Pressure Rating: 250 psi
• Series: TB Series
• Softgoods Material: EPDM/FKM
• Temperature Rating: 32 to 190 degrees Fahrenheit
• Top to Inlet Center: 4.43 inches
• Trim Material: PVC Stem and PTFE Seat
