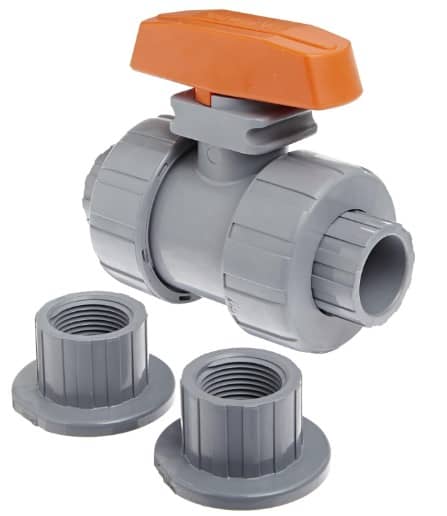

HAYWARD TB1125STE 1-1/4 PVC True Union Ball Valve w/EPDM o-rings

Product Description

The HAYWARD TB1125STE is a 1-1/4 inch PVC True Union Ball Valve. This valve features EPDM o-rings and is designed with both socket and threaded end connections. It has a pressure rating of 250 psi at seventy degrees Fahrenheit and a full port for improved flow.

• Double O-Ring stem seal
• Easy to service
• Easily automated

Product Highlights

This valve is suitable for various applications including water treatment, chemical processing, and swimming pool systems.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• MPN: TB1125STE

Technical Specifications

• Body Material: PVC
• End Style: Socket/Thread
• Inlet to Outlet Length: 6.3 inches
• Nominal Size: 1-1/4 inches
• Orifice Size: 1-1/2 inches
• Port Type: Full
• Pressure Rating: 250 psi
• Series: TB Series
• Softgoods Material: EPDM
• Temperature Rating: 70 degrees Fahrenheit
• Top to Inlet Center: 3.92 inches
• Trim Material: PTFE Seat
