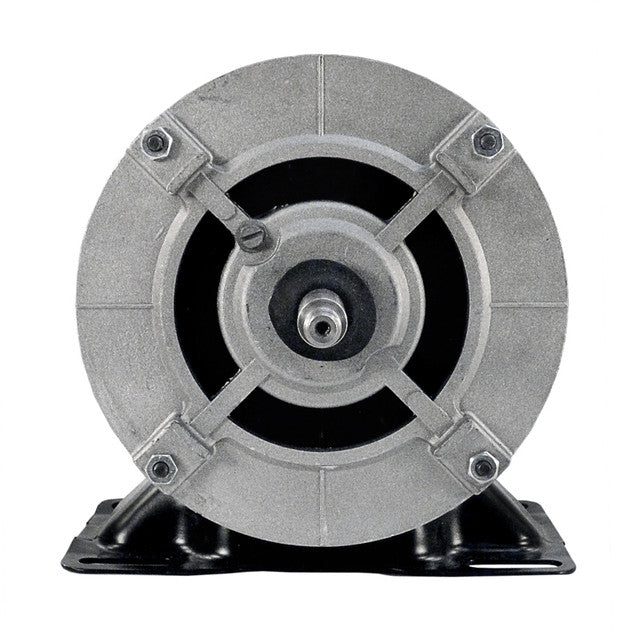

Hayward spx1520z1esc Pool Pump Motor 2 Hp 115V

Product Description

The HAYWARD spx1520z1esc is a genuine single-speed replacement motor rated at 2 HP and designed for residential pool pump service. Operating at 115 volts and 60 Hz, this motor includes an integrated on/off switch that allows direct control at the pump without a separate disconnect. Sealed ball bearings reduce noise during operation and provide protection against moisture ingress and heat buildup. This is an OEM-specification part intended for licensed pool service technicians and qualified installers performing motor replacements on compatible Hayward pump models.

This motor is suited for residential in-ground and above-ground pool systems where a 2 HP single-speed motor is the specified replacement. It is designed for use with Hayward Power-Flo and Power-Flo Matrix series pool pumps. The integrated switch makes it a practical choice for installations where a local on/off control point at the equipment pad is preferred or required by local code.

Key Features

• 2 HP single-speed motor output for direct OEM-style replacement
• 115 volt, 60 Hz operation for standard residential electrical service
• Integrated on/off switch for local control at the pump
• Sealed ball bearings for quiet operation and moisture resistance
• Genuine Hayward replacement part for specified pump series

Compatibility

Designed for use with Hayward Power-Flo and Power-Flo Matrix series pool pumps as an OEM-style replacement motor.

Installation Notes

Motor replacement on pool pump equipment should be performed by a licensed pool service technician or qualified electrician. Shut off power at the circuit breaker and verify the circuit is de-energized before beginning any work. Local electrical codes, including applicable NEC requirements for pool and spa equipment, apply to this installation. Do not operate the motor dry or without water prime established in the pump housing.

Technical Specifications

• Horsepower: 2 HP
• Voltage: 115 volts
• Frequency: 60 Hz
• Speed: Single-speed
• Switch: Integrated on/off switch
• Bearing Type: Sealed ball bearings

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: spx1520z1esc
