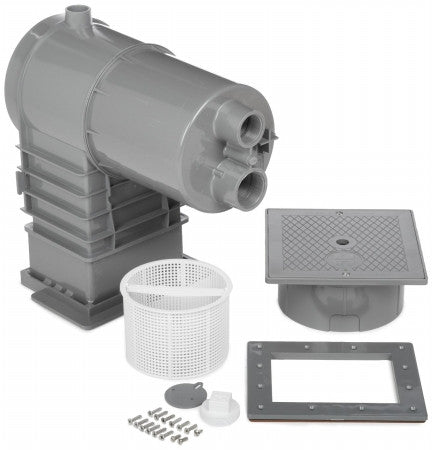

Hayward sp10852omdgr Wide Track Skimmer 1.5in Fpt Dark Gray

Product Description

The HAYWARD sp10852omdgr is an automatic surface skimmer built for large-capacity in-ground pools and spas with vinyl or fiberglass construction. It features a wide 15.5-inch skimmer face and a 9.25-inch throat length that increases skimming action and accelerates debris removal. The unit installs as an outside mount with a 1.5-inch FIP pipe connection. ABS construction eliminates submerged joints, making the body non-conductive and non-corrosive for long service life in demanding pool environments. Pool service professionals and plumbers typically handle installation in new construction and retrofit applications.

This skimmer is suited for residential and light commercial in-ground pools and spas using vinyl liner or fiberglass shells. The outside mount configuration positions the skimmer body on the exterior wall of the pool shell, a common approach in vinyl liner installations. The Wide Track Series design provides an expanded opening that improves surface water turnover and keeps debris from re-entering the pool. The unit is available with an optional Float Valve and Equalizer Kit to meet NSF commercial requirements when that configuration is needed.

Key Features

• 15.5-inch wide skimmer face opening for high-capacity debris removal
• 9.25-inch throat length extends skimming reach and improves flow
• Outside mount design suited for vinyl liner and fiberglass in-ground pools
• ABS construction with no submerged joints — non-conductive and non-corrosive
• 1.5-inch FIP pipe connection for standard pool plumbing
• Square cover included; compatible with optional Float Valve and Equalizer Kit for NSF commercial use

Compatibility

Designed for large-capacity vinyl liner and fiberglass in-ground pools and spas requiring an outside mount skimmer with a 1.5-inch FIP pipe connection. Part of the HAYWARD SP 1080 AutoSkim Wide Track Series.

Installation Notes

Installation is typically performed by a licensed pool contractor or plumber. Shut off the circulation pump and depressurize the plumbing system before cutting the pool wall or making pipe connections. Follow local codes and the manufacturer instructions for wall cutout dimensions and sealing to prevent liner leaks. Do not operate the skimmer without adequate water level, as running the pump dry can damage equipment.

Technical Specifications

• Pipe Size: 1.5 inches FIP
• Throat Length: 9.25 inches
• Skimmer Face Opening: 15.5 inches wide
• Mount Type: Outside Mount
• Cover Style: Square
• Series: Wide Track
• Material: ABS
• Color: Dark Gray

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: sp10852omdgr
