Hayward QVC1010TSEG Series QVC Compact Ball Valve, Threaded End, 1 inches Size

Product Description

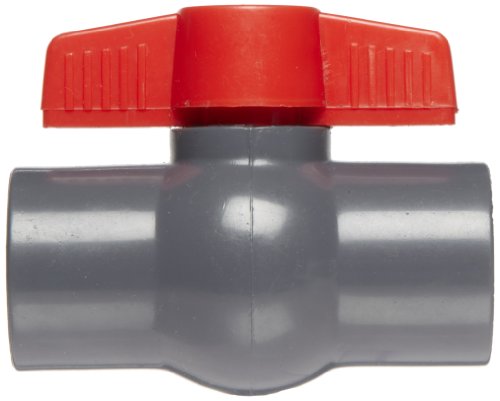

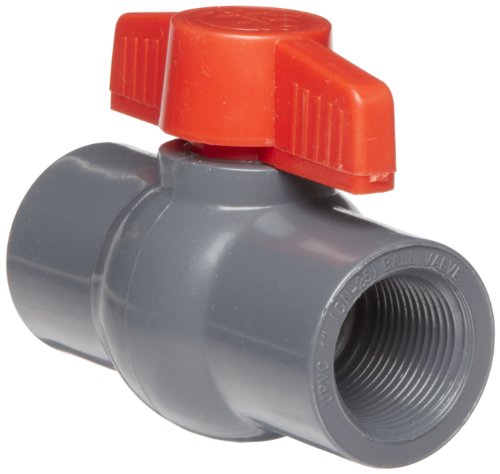

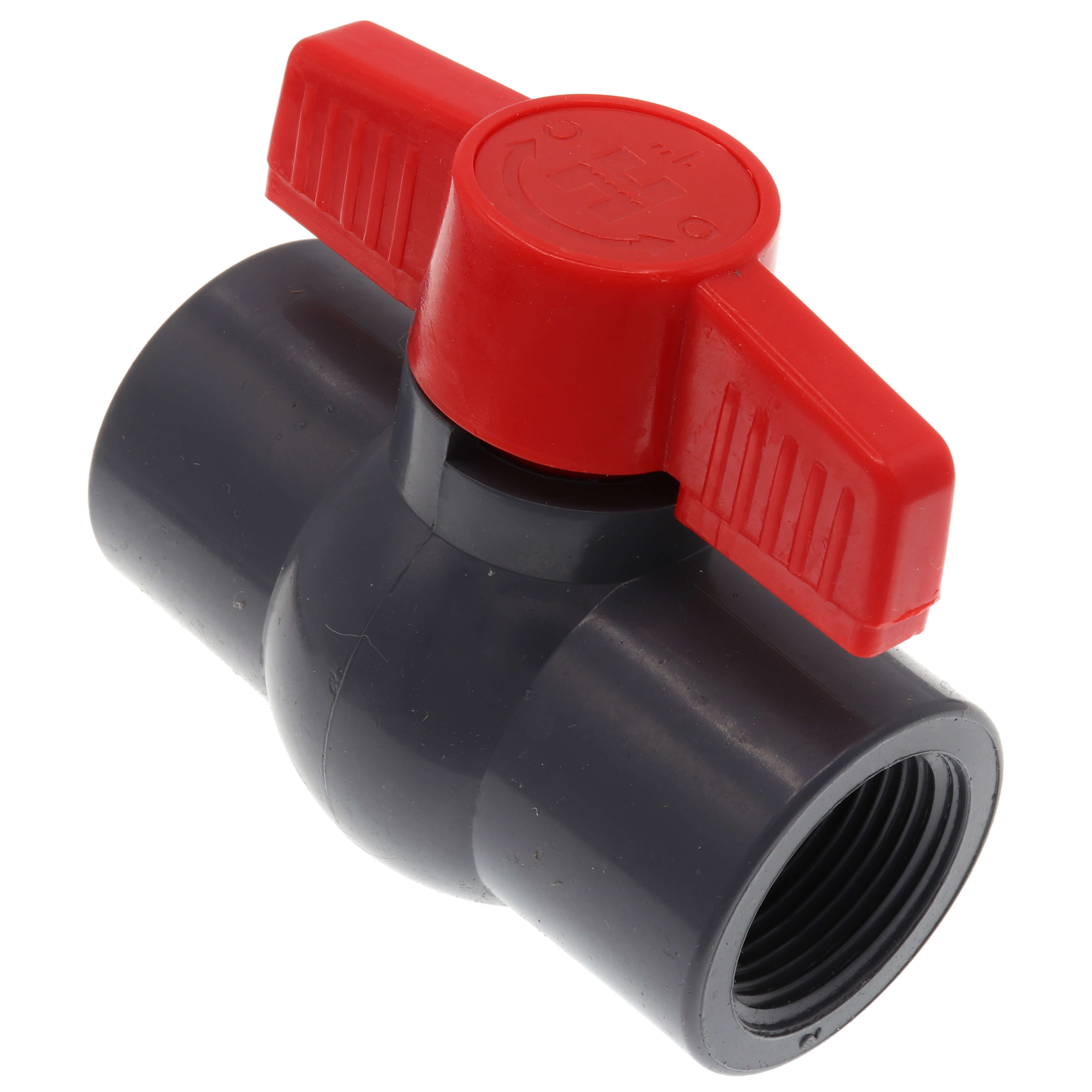

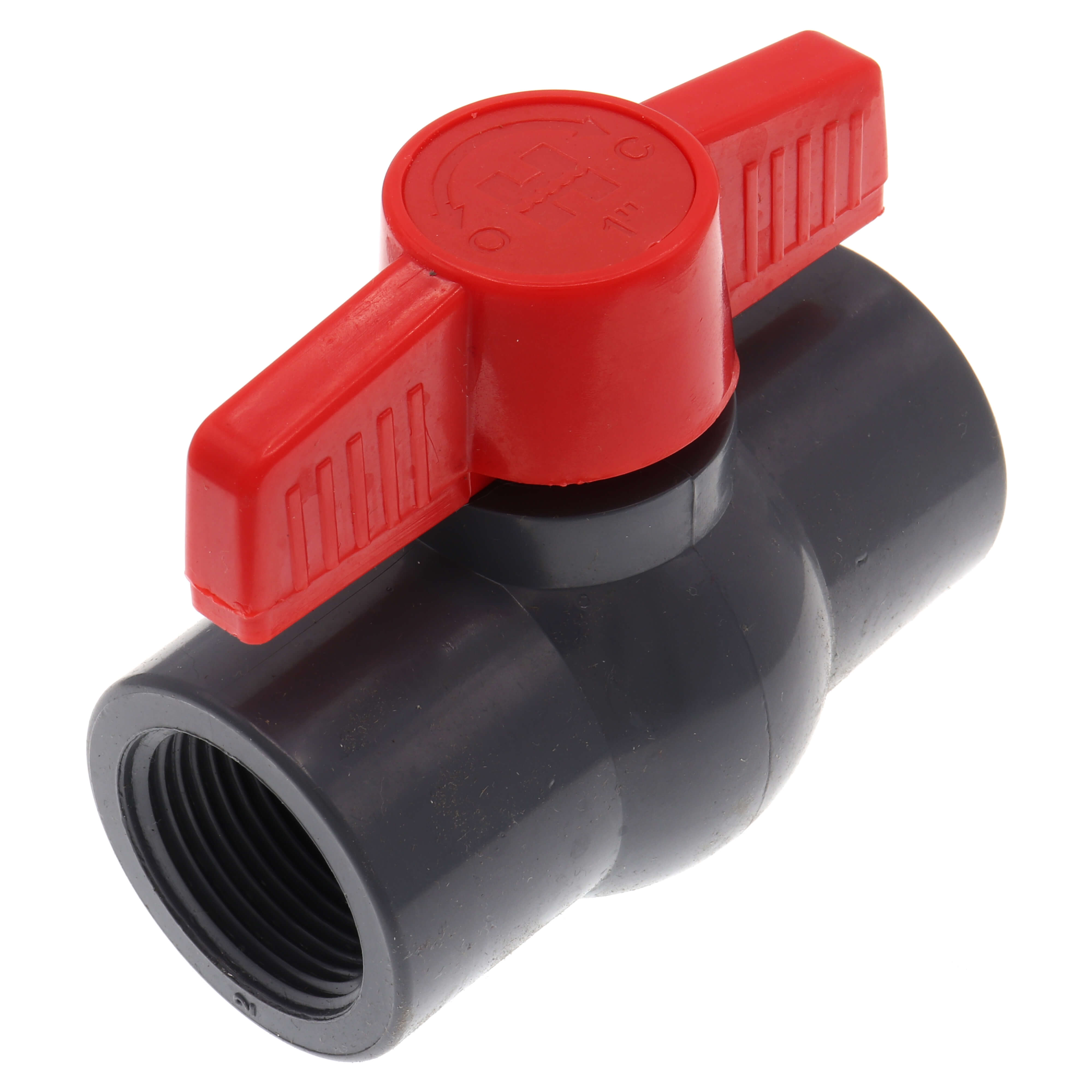

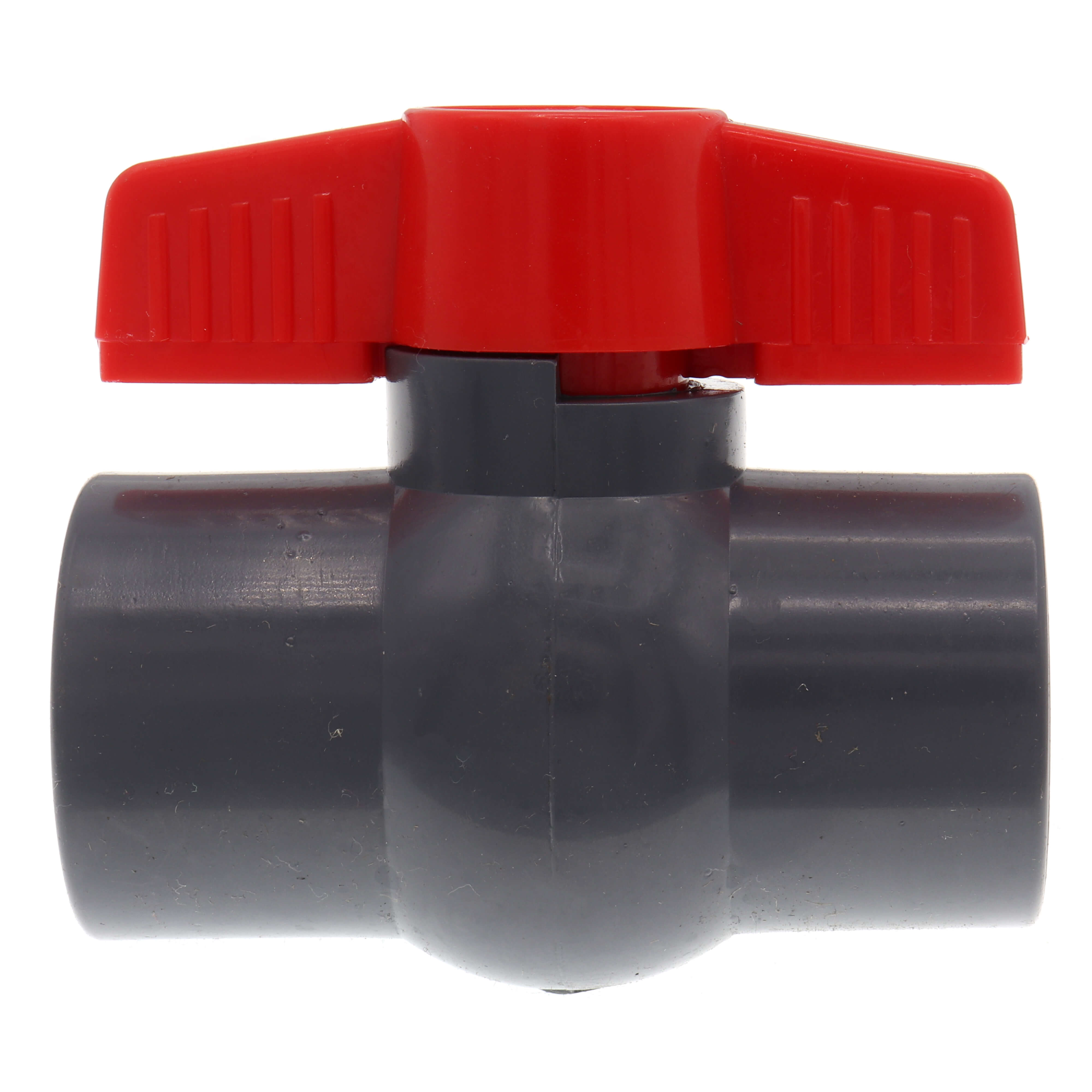

The Hayward QVC1010TSEG Series QVC compact ball valve features a threaded end and 1" size. Suitable for Schedule 40 and Schedule 80 pipe up to 150 PSI @ 73F applications. These QVC series compact ball valves are available in PVC with EPDM O-rings and Santoprene (TPV) seats. End connections are socket or threaded.

• Compact and lightweight design
• Low torque easy 1/4-turn operation
• No internal parts to replace
• EPDM O-ring

Product Highlights

Compact ball valve with threaded end, EPDM O-ring, and Santoprene seat. Features a lightweight design and easy quarter-turn operation.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: QVC1010TSEG

Technical Specifications

• Brand: Hayward
• MPN: QVC1010TSEG
• Size: 1"
• Product Type: MECHANICAL_COMPONENTS
• Product Group: BISS
• Suitable For: Schedule 40 and Schedule 80 pipe up to 150 PSI @ 73F applications
• Series: QVC
• Material: PVC
• O-Ring Material: EPDM
• Seat Material: Santoprene (TPV)
• End Connections: Socket or Threaded
• Channel: Open Line
• Actuator Type: T-Handle
• Body Material: PVC
• End Style: FNPT
• Inlet to Outlet Length: 4 in
• Nominal Size: 1 In
• Orifice Size: 1.08 in
• Pressure Rating: 150 psi
• Softgoods Material: EPDM
• Temperature Rating: 70 deg F
• Top to Inlet Center: 2.26 in
• Trim Material: Santoprene TPV Seat
• Type: Compact
