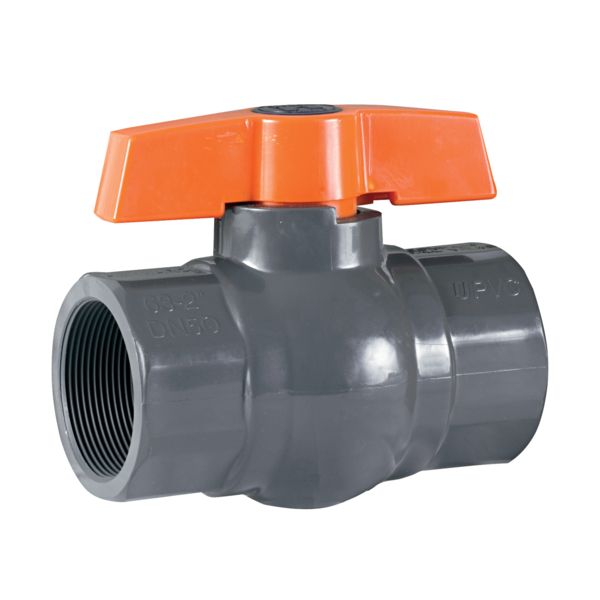

HAYWARD QV1T200TE 2 PVC QIC2 Compact Ball Valve w/EPDM O-rings PTFE seats

Product Description

The HAYWARD QV1T200TE is a compact 2-inch PVC QIC2 ball valve designed for efficient fluid control in various applications. It features EPDM O-rings and PTFE seats to ensure reliability and durability. This model is ideal for OEM requirements and operates at a pressure rating of 150 psi at 70 degrees Fahrenheit.

• Low torque, easy 1/4-turn operation
• Rugged, lightweight construction
• No internal parts make maintenance easy

Product Highlights

The HAYWARD QV1T200TE ball valve is perfect for professionals requiring sturdy valves for plumbing or industrial applications.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• SKU: HAY QV1T200TE

Technical Specifications

• Body Material: PVC
• Color: Gray
• End Style: Thread
• Inlet to Outlet Length: 5.9 inches
• Nominal Size: 2 inches
• Orifice Size: 1.96 inches
• Port Type: Full
• Pressure Rating: 150 psi
• Series: QV Series
• Softgoods Material: EPDM
• Temperature Rating: 70 degrees Fahrenheit
• Top to Inlet Center: 3.45 inches
• Trim Material: PTFE Seat
• Type: Compact
