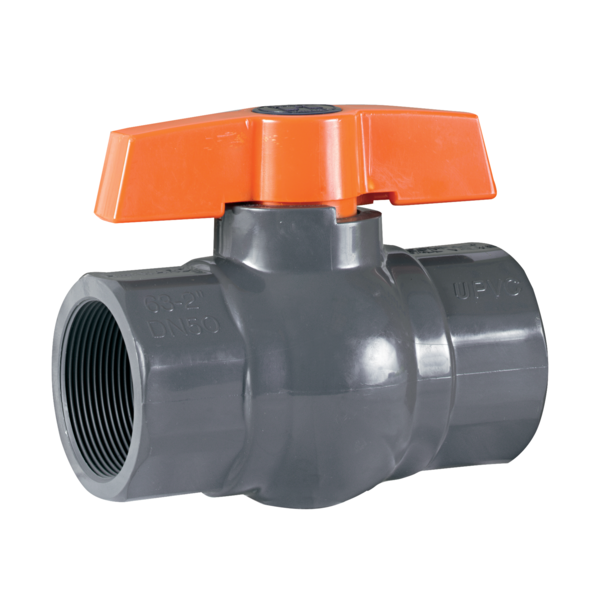

Hayward QV1T150TE 1-1/2 inches PVC QIC2 Compact Ball Valve

Product Description

The HAYWARD QV1T150TE is a 1-1/2" PVC QIC2 compact ball valve with EPDM o-rings and PTFE seats, designed for manual operation. It features a rugged, compact, and lightweight design with threaded end connections. All valves are assembled with silicone-free lubricant.

• Rugged, Compact and Lightweight Design
• Full Port Design
• PTFE Seats

Product Highlights

Ideal for OEM requirements, this valve offers low torque, easy 1/4-turn operation, and has no integral parts to replace.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: QV1T150TE
• Country of Origin: United States

Technical Specifications

• Pipe Size: 1-1/2 in
• Material: PVC Gray
• Sealing Material: EPDM
• End Connection Type: Threaded
• Operation Type: Manual
• Chassis Description: Standard Body
• MPN: QV1T150TE
• Manufacturer: Hayward
• Type: Ball Valve
• Style: Compact
• Series: QV Series
• Valve Type: Compact Ball Valve
• Valve Size: 1-1/2"
• Valve Connection Type: Threaded
• Seal Type: Double O-Ring Stem
• Seal Material: EPDM
• Seat Material: PTFE
• Port Type: Full
• Max Pressure: 150 PSI (10.3 bar) @ 70°F (21°C)
• Body Material: PVC
• End Style: Thread
• Inlet to Outlet Length: 5.09 in
• Nominal Size: 1-1/2 In
• Orifice Size: 1.53 in
• Pressure Rating: 150 psi
• Softgoods Material: EPDM
• Temperature Rating: 70 deg F
• Top to Inlet Center: 2.85 in
• Trim Material: PTFE Seat
