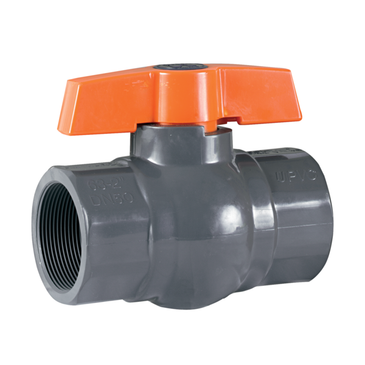

HAYWARD QV1T125TE 1-1/4 PVC QIC2 Compact Ball Valve w/EPDM o-rings PTFE seats

Product Description

The HAYWARD QV1T125TE is a compact ball valve designed for fluid control in various systems. This valve features a nominal size of one and one-quarter inches and is constructed from durable PVC for longevity. Its design includes EPDM o-rings and PTFE seats, making it ideal for a range of applications where reliability is required.

• Compact and lightweight
• Easy 1/4-turn operation
• Threaded end style for simple installation

Product Highlights

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• UPC: 610377348812

Technical Specifications

• Body Material: PVC
• Color: Gray
• End Style: Thread
• Inlet to Outlet Length: 4.83 inches
• Nominal Size: 1-1/4 inches
• Orifice Size: 1.26 inches
• Port Type: Full
• Pressure Rating: 150 psi
• Series: QV Series
• Softgoods Material: EPDM
• Temperature Rating: 70 degrees Fahrenheit
• Top to Inlet Center: 2.6 inches
• Trim Material: PTFE Seat
• Type: Compact
