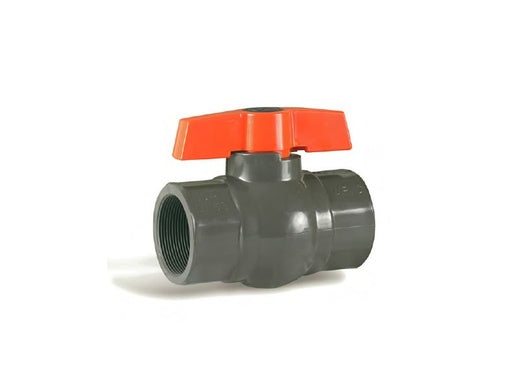

Hayward QV1T125SE 1-1/4 PVC QIC2 Compact Ball Valve w/EPDM o-rings

Product Description

The Hayward QV1T125SE is a compact ball valve designed for efficient flow control. It features a socket end and is made from durable PVC material. This valve can handle pressures up to 150 psi at seventy degrees Fahrenheit. With a full port design and a one point two six inch orifice, it is ideal for various plumbing applications.

• Easy quarter-turn operation
• Rugged and lightweight construction
• No internal parts to replace

Product Highlights

This valve is perfect for OEM requirements and features EPDM o-rings for reliable sealing.

Product Information

Standard Information

• Manufacturer: Hayward Industrial Products
• Series: QV Series

Technical Specifications

• Body Material: PVC
• Color: Gray
• End Style: Socket
• Inlet to Outlet Length: 4.83 inches
• Nominal Size: 1-1/4 inches
• Orifice Size: 1.26 inches
• Port Type: Full
• Pressure Rating: 150 psi
• Softgoods Material: EPDM
• Temperature Rating: 70 degrees Fahrenheit
• Top to Inlet Center: 2.6 inches
• Trim Material: PTFE Seat
• Type: Compact
