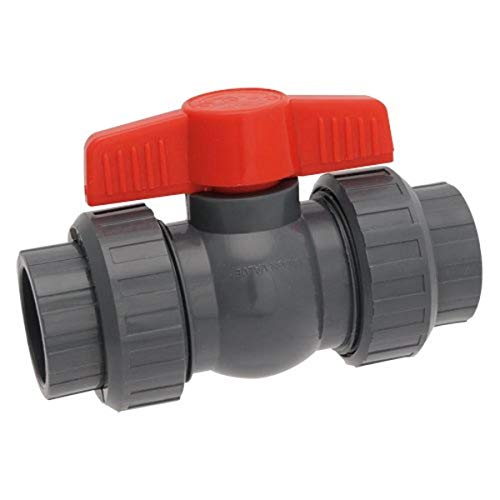

Hayward QTA1015CSEG True Union Compact PVC Ball Valve 1-1/2 inch

Product Description

The Hayward QTA1015CSEG is a 1-1/2 inch True Union Compact PVC Ball Valve, built for durability and reliability. This valve is made from industrial-grade gray PVC and features EPDM O-rings and Santoprene (TPV) seats. It is designed for versatile applications, including general service, commercial plumbing, irrigation, swimming pools, water parks, and aquariums.

• Gray PVC construction
• True union end connections
• Rated at 150 PSI

Product Highlights

This compact and lightweight ball valve is easy to install with low torque and offers easy 1/4-turn operation. It requires no internal parts replacement and is ideal for OEM applications.

Product Information

Standard Information

• Manufacturer: Hayward Industries
• Model: QTA1015CSEG
• UPC: 610377095198

Technical Specifications

• Body Material: PVC
• Color: Gray
• End Style: Socket/Thread
• Inlet to Outlet Length: 6.9 inches
• Nominal Size: 1-1/2 inches
• Port Type: Full
• Pressure Rating: 150 PSI
• Series: QTA
• Softgoods Material: EPDM
• Temperature Rating: 70 degrees Fahrenheit
• Top to Inlet Center: 2.91 inches
• Trim Material: Santoprene (TPV) Seat
• Type: Compact
