Product Description

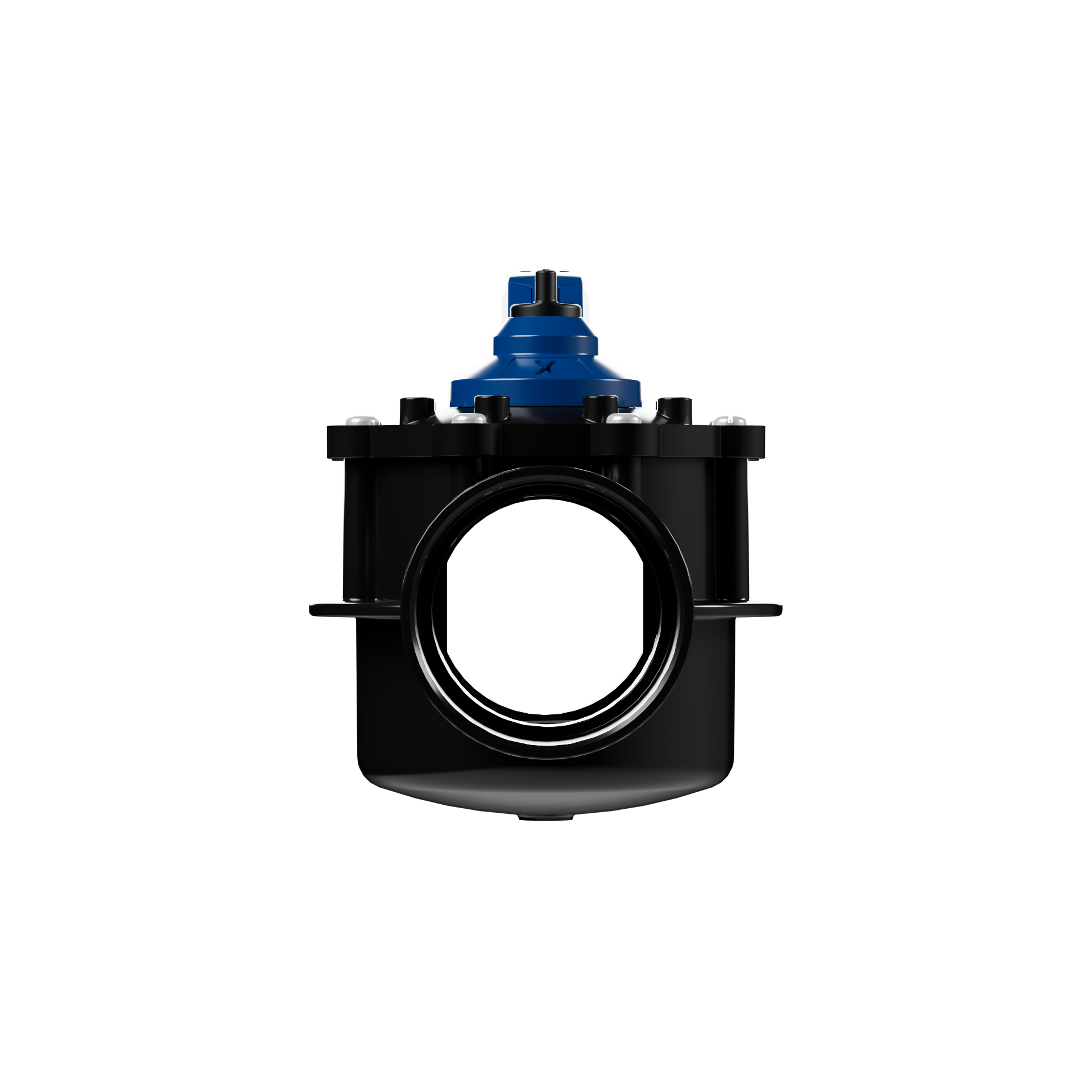

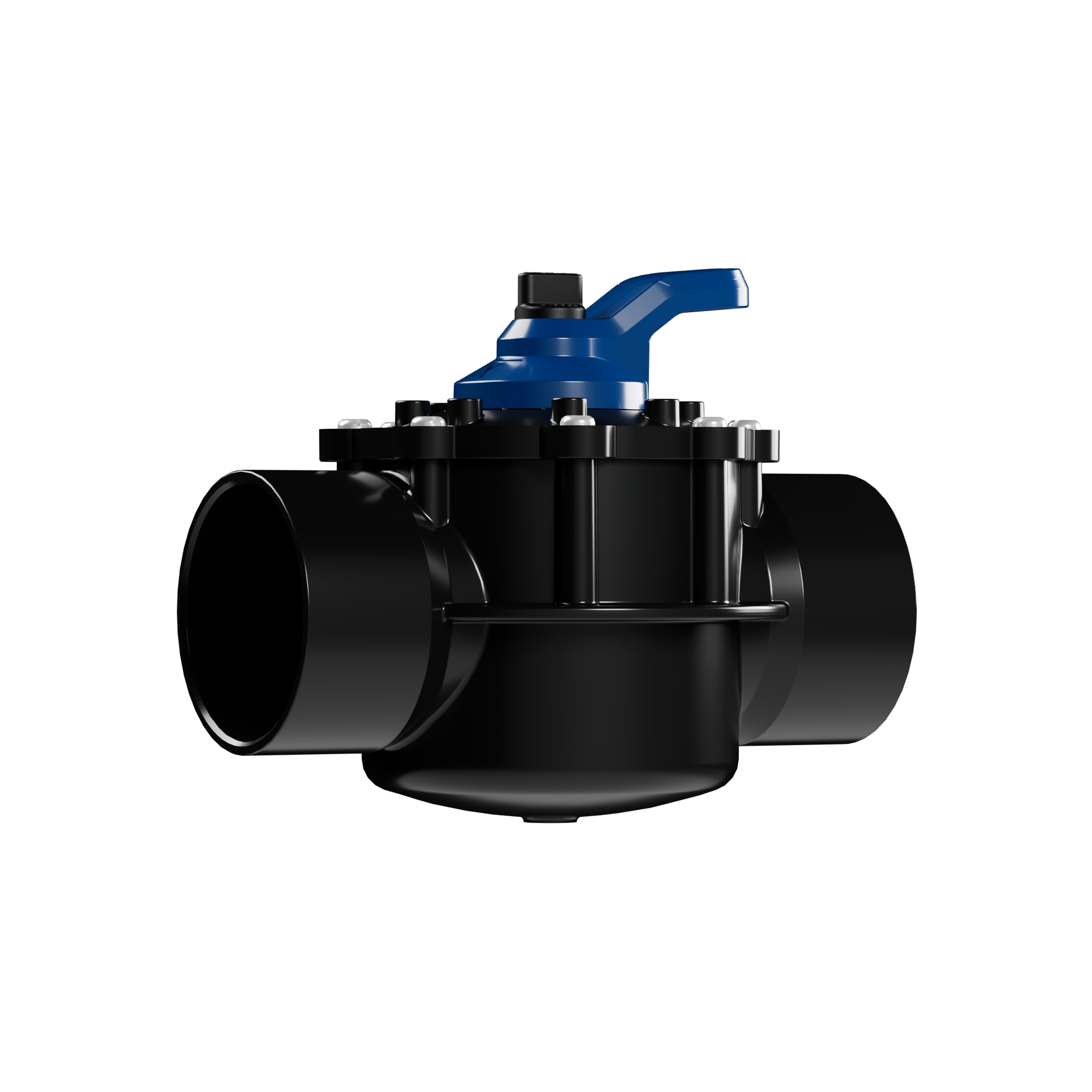

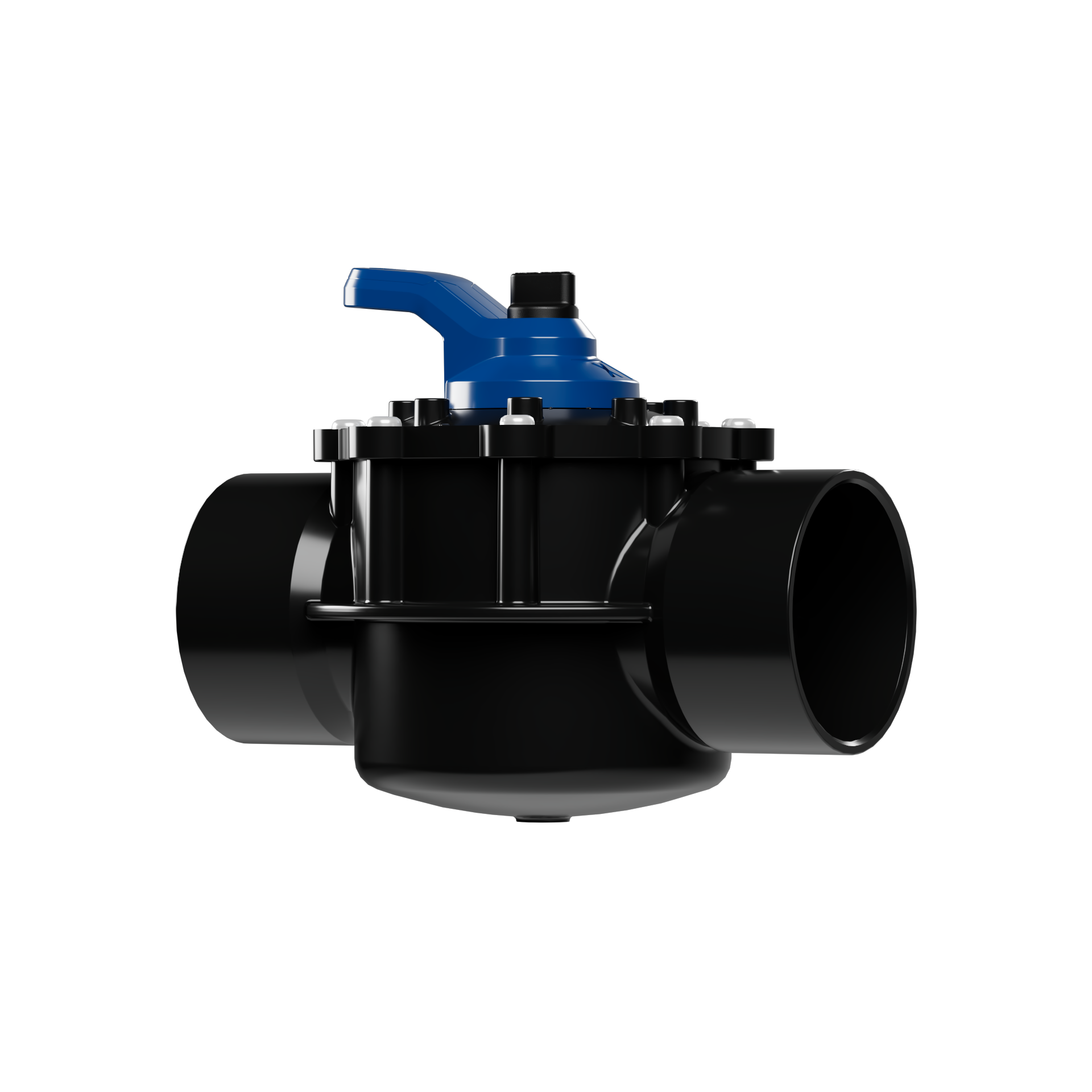

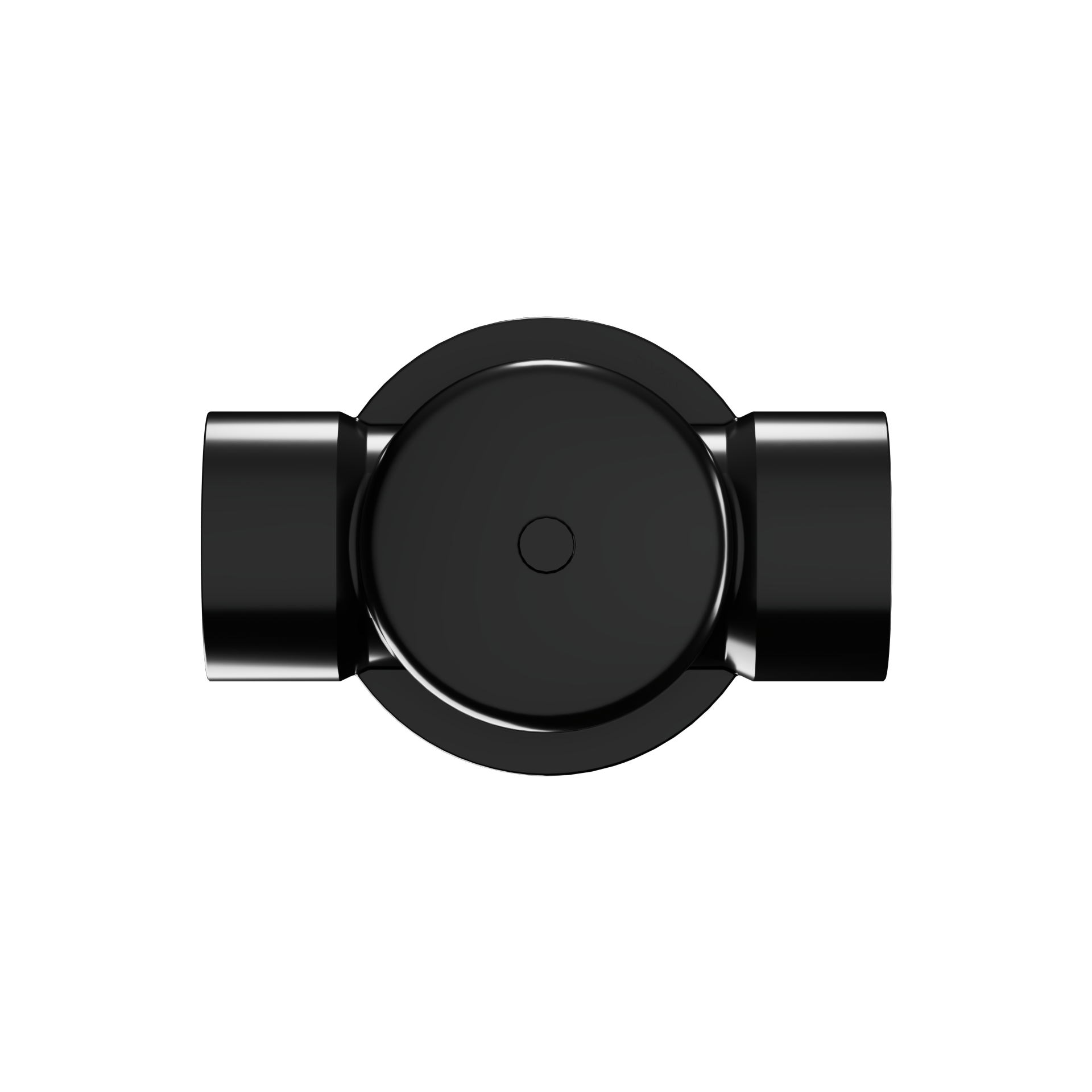

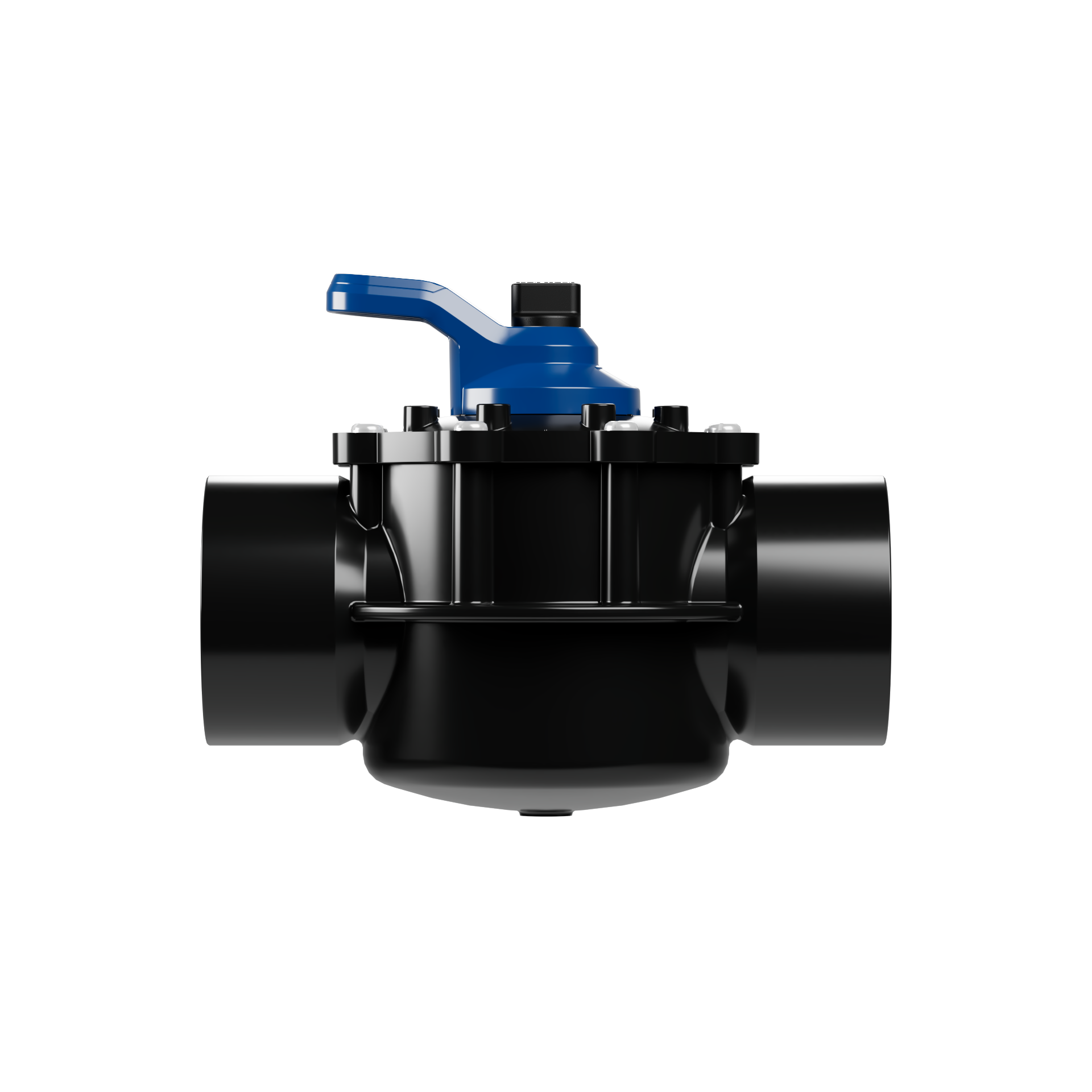

The HAYWARD psv2s3 is a two-port CPVC diverter valve engineered for pool and spa plumbing systems where reliable flow control is essential. Built with a 3-inch port size, this valve is designed to minimize headloss while handling flow rates up to 230 GPM, making it suitable for both residential and light commercial installations. The CPVC construction offers strong resistance to the chemical environment common in pool systems. Licensed pool service professionals and plumbers install this valve as part of recirculation, filtration, and auxiliary plumbing circuits.
The psv2s3 is rated for use on above-ground and in-ground pool installations. Its two-port design makes it a practical choice for diverting or shutting off flow between pump, filter, and auxiliary equipment lines. The open-line channel configuration supports high-volume flow with reduced pressure drop, which is particularly useful in larger pool systems where maintaining circulation efficiency is a priority.
Key Features
- 3-inch two-port diverter valve for high-volume pool plumbing applications
- Flow rate capacity up to 230 GPM with minimized headloss
- CPVC construction resists pool chemicals and UV degradation
- Compatible with both above-ground and in-ground pool systems
- Open-line channel design supports efficient, unrestricted flow
- 3-year parts warranty coverage
Compatibility
Designed for use in above-ground and in-ground pool plumbing systems. Suitable for 3-inch CPVC plumbing circuits typically found in residential and light commercial pool installations.
Installation Notes
Installation should be performed by a licensed plumber or qualified pool service technician familiar with CPVC solvent-weld fittings and local plumbing codes. Shut down the pool pump and relieve system pressure before removing or installing any valve. CPVC primer and solvent cement appropriate for CPVC material must be used when making solvent-weld connections. Allow full cure time per cement manufacturer instructions before restoring system pressure.
Technical Specifications
-
Port Size: 3 inches
-
Port Configuration: Two Port
-
Flow Rate: Up to 230 GPM
-
Material: CPVC
-
Pool Type: Above Ground, In Ground
-
Channel: Open Line
-
Shipping Dimensions: 8.8 inches x 10.1 inches x 10.1 inches
-
Shipping Weight: 3.38 pounds
-
Warranty - Parts: 3-year
-
Warranty - Labor: None
Standard Information
-
Brand: HAYWARD
-
Manufacturer Part Number: psv2s3
